Fiberscope MiniFlex - Model 19 and 36 -Flexible Plumbing Camera

Innovative plumbing camera, the MiniFlex, features extreme portability and maneuverability.

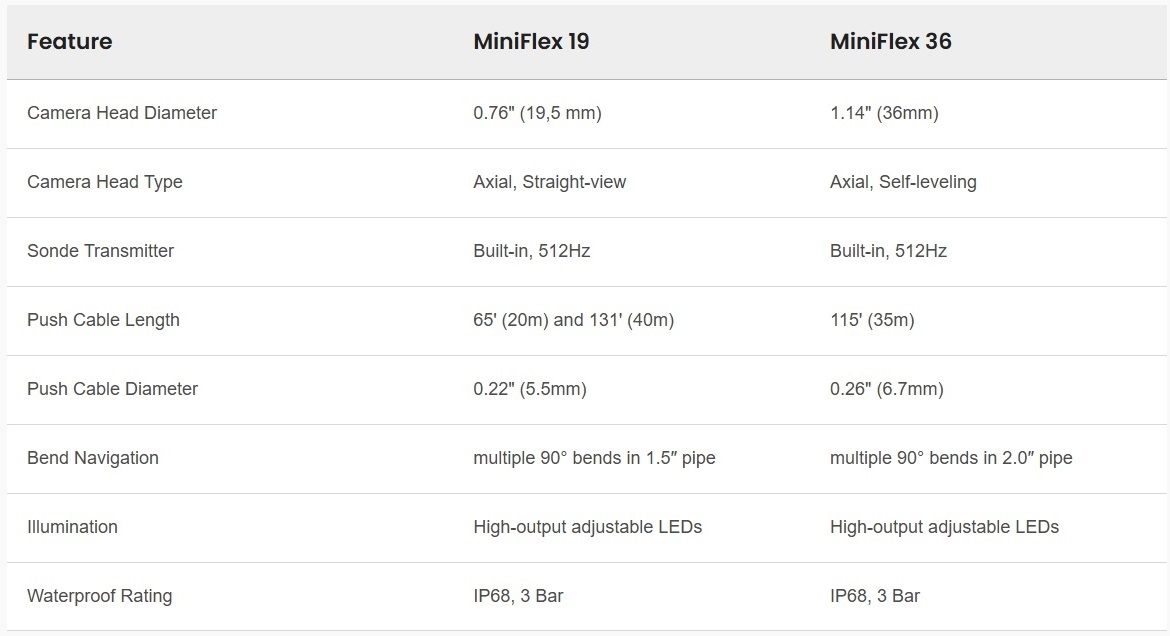

The MiniFlex all-in-one sewer inspection camera is the best and only device you will ever need for small-diameter pipe inspections. These systems are ideal for plumbers, pool and spa professionals, and pipefitters. The special patented flexi-tube neck behind the camera head makes MiniFlex extremely flexible and capable of navigating multiple 90-degree bends in 1½" pipes and P-traps in 1¼" (32mm) PVC pipes. The MiniFlex camera from Camtronics can be used to inspect kitchen and bathroom drains, pools, spas, hot tubs, showers, sprinkler lines, sewer lines, and narrow-diameter industrial machinery that other units cannot navigate. At this time, there are two models of MiniFlex Plumbing Cameras available, one with a 19mm(0.75") straight-viewing camera head and a 5.5mm (0.22") flexible push cable for inspecting pipes from 1¼" to 4" and the other version with a 36mm(1.5") self-leveling camera head and a 6.7mm(0.26") push cable for pipes from 2" to 8". Both of these units share the same control hub and have a similar design.

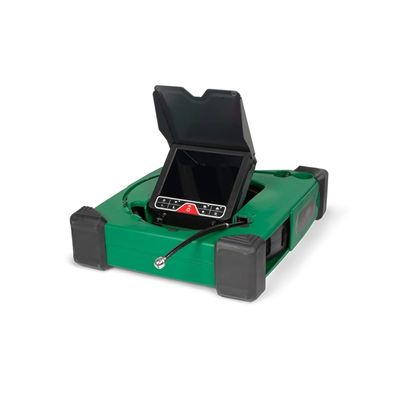

The camera heads are made of stainless steel and sealed tightly with a waterproof rating of 3 bars, which is submersible to 100ft. The scratch-proof sapphire lenses protect the camera chip from damage, and a 512Hz sonde beacon permits the precise location of the camera head behind walls, under the floor, and inside the pipe. The combination push cable connects to the camera head with a patented flexi-rubber neck. This feature makes the MiniFlex plumbing camera stand out among other plumbing cameras, which makes it possible to pass multiple bends and elbows. The flexible cable is perfect for tight corners and traps; however, as field tests have shown, the cable is rigid enough to also perform in long, larger-diameter pipes as well, making it an all-in-one solution. The MiniFlex plumbing camera set from Camtronics, while extremely portable, is also entirely self-contained. It is easy and quick to carry, set up anywhere, and store the plumbing camera thanks to its compact camera system and lightweight, around 10kg (22lbs).

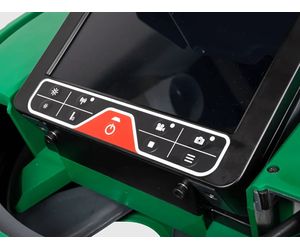

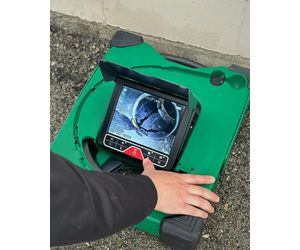

During the inspections, the job of capturing images and videos, overlaying text, and playing them back right on site is made easy with the touchscreen monitor and in-reach controls. The sunshade protects the 8" touchscreen display and monitor that feature video output, audio and footage recording, and a SD card insert for memory. An on-screen footage counter tracks the amount of unspooled cable and displays it on the screen, which allows you to know approximately how long the pipe is or where pipe damage occurred. With a rechargeable battery life of up to 7hrs, this compact pipe inspection camera allows remote work to be done without headache. This plumbing camera is sold as a complete all-in-one set with everything that you need to be included and ready to go. The only thing to add for a full package is a sonde locator to locate the camera head.

Fiberscope.net is an authorized reseller and a repair center for Camtronics MiniFlex flexible drain cameras.
