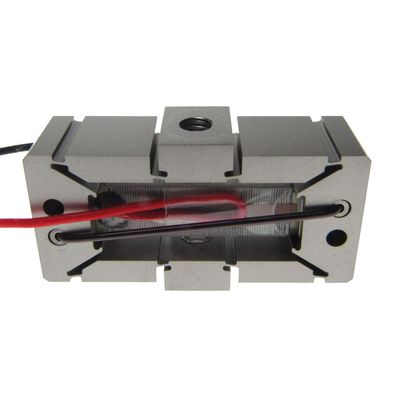

DSM - Model FPA-0100E-S-0518 -Flexure Guided Piezoelectric Actuator
DSM’s FPA is a flexure guided piezoelectric actuator useful for both dynamic and static applications. Custom mounting conditions can be integrated into the design. “E” version actuators expand when they are energized.
Most popular related searches
- Motion Direction: Expanding
- Nominal Travel, 0V to 150V: 84µm
- Nominal Travel, -30V to 150V: 105µm
- Nominal Stiffness: 1.85N/µm
- Unloaded Resonant Frequency: 1440Hz
- Blocked Force*: 155N
- Capacitance: 1.6µF
- Material: Stainless Steel
- Mass**: 15g
- Electrical Interface: Flying leads
- Mechanical Interface: Single #2-56 on center
- Height: 15mm
- Width: 28mm
- Depth: 10mm
- * Blocked force calculated as Stiffness x Travel Range at 0V to 150V
- ** Mass stated for reference
- Integrated position sensor
- Vacuum compatibility
- Custom mounting holes
- Custom wire lengths and connectors
- Non-magnetic compatibility
