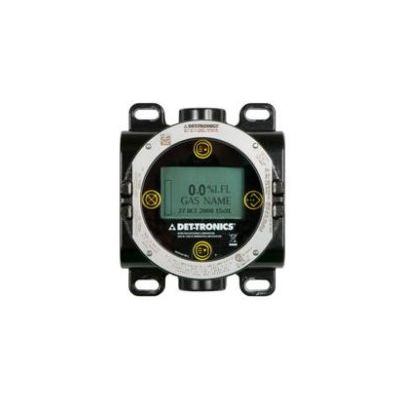

FlexVu - Model UD10 -Universal Display
The FlexVu Universal Display is a life-safety display unit that provides non-intrusive calibration, local event logging, and third-party performance certifications. This display/communicator reduces spare-parts inventory by operating with industrial communication protocols such as HART and Modbus and by working with a wide spectrum of toxic and combustible gas sensors.
- PointWatch IR (PIR9400)
- PointWatch Eclipse IR (PIRECL)
- Open Path Eclipse IR (OPECL)
- Catalytic Combustible sensor (CGS) via the 505 transmitter
- NTMOS hydrogen sulfide sensor
- Electrochemical C706x Series (not O2)
Additional gas and flame products will be added soon. Rated for hazardous areas (explosion proof) and third-party approved to FM, CSA, and ATEX/IEC, the FlexVu display performs as a gas transmitter and controller. It can be coupled directly to a single transmitter/sensor or be placed remotely using a sensor termination box. The device features nonintrusive calibration using a hand-held magnetic tool or a HART communicator.
- Magnetic switches provide a non-intrusive user interface allowing users to navigate and adjust field-critical parameters without requiring a HART handheld communicator.
- Compatible with many types of gas detectors and provides a HART-compatible 4 to 20 mA output.
- Users can use a single data log with a common interface for event, fault, and alarm data.
- Functional with toxic, combustible, and optical flame detectors
- Saves time with smart-device setup, calibration, and interrogation
- Rugged construction suitable for industrial applications
- Menu is intuitive and easy to use
- Operates in rain or shine and dusty days NEMA 4X / IP66
- Backlit LCD display simple to read night or day
- Performance approved by CSA and FM
- Convenient eye-level display when used with sensor separation kit
- Non-intrusive calibration using a hand-held magnetic tool
- Compatible with HART Communicator for remote log and status retrieval
- Universal design supports multiple Det-Tronics sensors or generic linear 4-20 mA sensors.
- Local 160 x 100 alpha‑numeric LCD display, which continuously displays the gas level, gas type, and units measured.
- Backlit and heated display.
- Non-intrusive calibration quickly performed by one person.
- Rugged construction approved for use in classified hazardous areas.
- Linear isolated/non-isolated 4-20 mA output with HART.
- Non-intrusive menu allows device configuration without de‑classifying the hazardous area.
- Internal magnetic switches provide a non-intrusive user interface.
- Smart capabilities with access to sensor information and measurement range.
- Event logs: Calibration with date and time stamp.
- Fault logs: Detector fault, Low power and General fault.
- Alarm logs: High gas alarm, Low gas alarm and Aux alarm.
