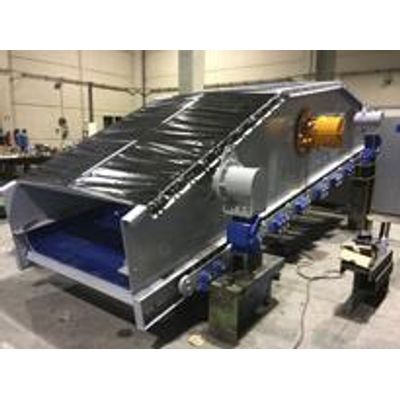

Dartek - Flip-Flop Elastic Mesh Vibrating Screens for Problematic Materials
FromDartek S.L
The Flip-Flop elastic mesh vibrating screens by Dartek Vibration are designed to address screening challenges associated with materials that are problematic due to excessive humidity, low density, or a tendency to adhere. These screens employ a sub-resonant chassis system that enhances the vibration of the main chassis, achieving accelerations up to 50 G's on the mesh. The surface of these screens comprises high-density polyurethane cloths, configured in independent modules with dimensions tailored to the screening project's width and mesh light requirements. This setup allows for effective screening where other technologies such as drum screens or conventional vibrating screens may fail. Ideal for sectors like metal recycling, aggregates, and glass recycling, they provide a reliable solution for handling challenging materials efficiently in the industrial sector.Most popular related searches
vibrating screen
vibrating screen mesh
drum screen
glass recycling
metal recycling
aggregate recycling
screening system
“Flip-Flop” polyurethane cloth elastic mesh vibrating screenings are meant to screen specifically problematic products, due to their excessive humidity, their low density or their likelihood to paste or to the fact they cannot be screened with guarantees with other technologies (drum screens, conventional vibrating screens, etc.).
These screens with a sub-resounding chassis system which amplifies the vibration of the main chassis, reaching up to 50 “G” accelerations on cloths.
The screening surface is made up of high density polyurethane cloths. Cloths are mounted in independent modules of useful dimensions of the screening width per a 330 to 400 mm length, depending on the project to be screened and the necessary mesh lights
