JONO - Model ZCS1600A -Flip Flow Screen

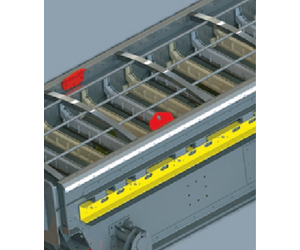

The Flip-Flow action stretches and slackens the screen mats very quickly. This action prevents build-up of fines material in comers or pegging in the screen mat apertures. The JONO Flip-Flow can screen to very small particle sizes because of this unique action. It is used in dry screening construction waste, crushed stone, sand, compost, wood chips, recycled glass and carpet fibres, slag and recycled electronic parts to name only a few applications.
- After-sales Service: Instruction for Commissioning and Maintenance
- Warranty: 1 Year
- Condition: New
- Certification: ISO, CE, SGS
- Automation: Automatic
- Treatment: mechanical shredding
- Customization: Available
Basic Info.:
- Model NO.: ZCS1600A
- Lead: Time: 1-3: Month
- Customize: Welcome
- Color: White/Orange/Customize
- MOQ: 1: set
- Transport: Package: Container
- Specification: ZCS1600A
- Trademark: Jono
- Origin: Jiangsu,: China
- HS Code: 8464909000
- Production Capacity: 10/Month
The centrifugal force generated by the flywheel vibrator makes screen body to reciprocate forward to form vibration. The flexible screen plate is repeatedly relaxed and tensioned under the action of inertial force. Thereby the small-sized material can be well screened out.
- Machine size: 7810*3500*1800mm
- Drive unit: 15KW
- RPM of main shaft: 750rpm
- Transmission model: Pulley drive
- Vibration source: Flywheel vibrator
- Input size: S60mm
- Screen size: 14mm
- Throughput capacity: 8-12t/h
Note: The throughput varies with the size of the screen.
- The vibrator is modular in design and can be adjusted by increasing or decreasing the weight.
- Longer service life due to the Germany-imported flexible screen unit.
- The structure design is reasonable, and the screen body has good vibration resistance.
- Screen replacement is convenient.
