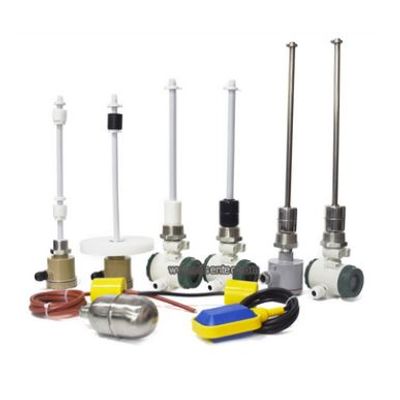

Sentec - Model SFLS200 -Float Level Switch
SFL200 series float level switch is mainly composed of three parts: magnetic float, sensor and transmitter. 304 stainless steel, PVC, PTFE and other materials are used as protection pipes and installation fixings for the floating ball liquid level meter; for highly corrosive media, polytetrafluoroethylene is sintered on the surface of contact medium metal protection pipes and floating balls
In a closed metal or plastic pipe, one or more magnetic spring switches are set, and then the tube is penetrated through one or more floating balls with a hollow and annular magnet inside. A fixed ring is used to control the floating ball and the magnetic spring switch at the relevant positions to make the floating ball float up and down within a certain range. The magnet in the floating ball is used to attract the contact point of the magnetic spring switch to generate the action of opening and closing, so as to control or indicate the liquid level.
- It can be used for multi-point control, and the control switch position can be customized according to the user`s needs
- Using magnetic spring switch does not need power supply, contact life can reach 2 million times
- Comparison of multiple switch control points with other types of liquid level switch
- There are PVDF, PP, PVC plastic materials and SUS304, SUS316 metal materials, because acid and alkali, high temperature environment can be used
- The magnetic spring switch is completely separated from the conductor from the liquid. It can also be used in high temperature and high voltage equipment
- Simple structure, stable and reliable performance, convenient installation
It is suitable for shipbuilding industry, generator equipment, petrochemical industry, food industry, waste water or water purification equipment, electronic industry, dyeing and finishing industry, chemical industry, rubber and plastic industry, hydraulic machinery, etc.
