Tough Guy - Model Type 2. DOT -Floating Turbidity Barriers

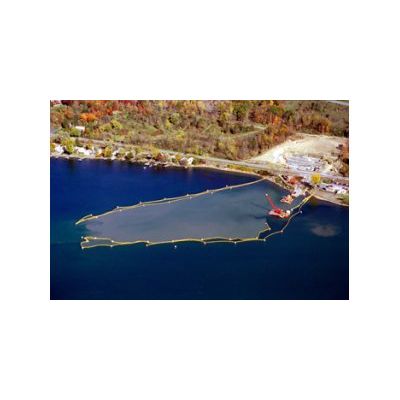

Type 2. DOT Floating Turbidity Barriers is the work horse of the Tough Guy line. It has a top load cable and special stress plates for reinforcing the corners and is designed to handle more severe conditions. It is recommended for lakes, streams, inter-coastal and tidal areas where current velocities up to five feet per second are expected.
Most popular related searches
The anchorage and installation must be designed to meet the site conditions. Contact a qualified engineer for assistance when extraordinary site conditions are encountered. Barrier sections are connected by rope lacing or nylon ties which can be furnished by L & M Supply.
Fabric - 18 oz. nominal laminated vinyl/ polyester having the following characteristics:
- Construction - vinyl laminate on 9x9 1000x1300 denier polyester scrim
- Weight – 18.5 oz. per sq. yd (434 gr./sq.m)
- Adhesion – 24 x 20 lb./2”
- Grab Tensile – 410 x 410 lb./in. (430 x 421 daN/5cm.)
- Tear - 100 x 100 lb./in. (95 x 95 daN)
- Hydrostatic – 600 psi (4167 kPa)
- Cold resistance to crack: -40° F/C
All seams heat sealed
- 5.8 inch poly rope reinforced vertical edges
- #5 brass grommets
- 5/16 inc. galvanized steel in plastic sleeve 7 x 19 load cable in top, 9800 lb. break strength (4439 daN)
- 5/16 in. galvanized chain ballast in bottom
- Aluminum stress plates at cable and chain termination
- EPS flotation, (8 in. x 8 in. standard), 26.7 lb./ft. buoyancy in fresh water, 28.4 lb./ft in saltwater.
