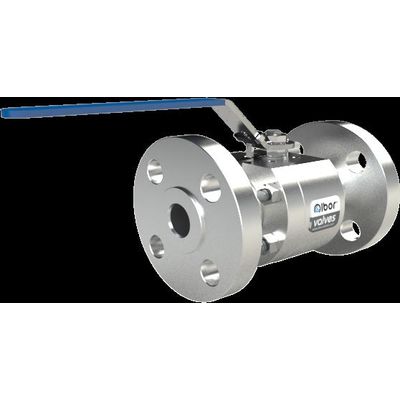

IBOR - Model Figure 32000 -Floating Valves for Side Entry Soft Seat
FromIBOR
Floating, side entry, soft seat, full and reduced bore, bidirectional, anti blow out stem, antistatic device, fire safe design, zero leak.
Most popular related searches
float valve
floating ball valve
fugitive emissions
drain plug
ball valve
integrated safety
thickness monitoring
Seat design
- Self-relieving seat (cavity relief)
Stem
- Stem or bonnet extension
- Design according to fugitive emissions
- Locking device
Others
- Drain plug
- Overlay on seat area or on all wetted parts
- Heating or cooling jacket
- Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1
- Socket Weld End: ASME B16.11
**integral nipples and available
- Butt Weld End: ASME B16.25
**integral nipples and available
- Threaded NPT End: ASME B1.20.1
- Threaded BSPP OR BSPT: BS21
- Others
- Normative: ANSI / DIN
- Design: API 6D / ISO 17292
- Face to Face: ASME B16.10 / EN 558.1 Serie 27
- Top Flange: ISO 5211
- Press-Temp Ratings & Thickness: ASME B16.34
- Test: API 6D / API 598 / EN 12266-1
- Pressure Equipment Directive: PED 2014/68/EU Mod. H1
- Equipment Directive: ATEX 94/9/EC
- Fire Safe: API 6FA / API 607 / ISO 10497-2
- Fugitive Emissions: Class”A” acc.to ISO 15484-2
- Safety integrity level: Sil 2 acc.to IEC 61508
- Material: NACE MR0175 Lastest Edition
- Certification:EN 10204 type 3.1, (3.2 upon request)
