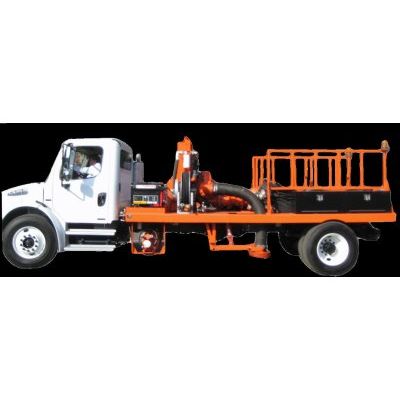

Vac-Con - Model FS3000 -Flood Truck
When one of Vac-Con’s customers came to Vac-Con with a request to make a Truck mounted Flood Truck we responded as we always do, “What can we do to help”. Vac-Con used our world renown hydrostatic drive system to power a 3000 gpm automatic self priming pump system. When roads flood this unit is quick to respond and quickly clears flooded areas.

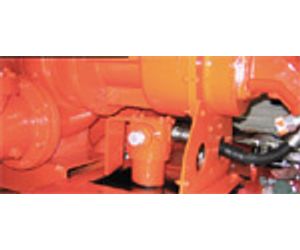

Hydrostatic Pump Drive
Hydrostatic pump and motor drive using a closed loop Rexroth hydrostatic 125cc piston pump and 125cc bend axis piston motor. Pump is transfer case / PTO driven.

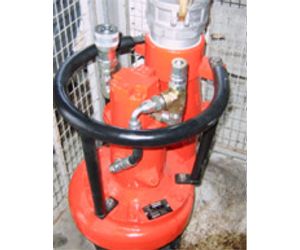

Hydraulic Submersible Pump
Two submersible pumps, 4 inch discharge ports, solids handling to 1-7/8 in., dry running, oil lubricated mechanical seals. Open loop hydraulic driven pump. 500 gpm at 2600 rpm and 75 ft. of head pressure. Maximum horsepower is 30 bhp at full flow and pressure.

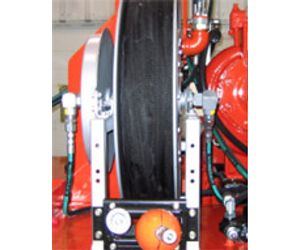

Two Hydraulic Reels
Two hydraulic reels are used to power submersible pumps, 100 feet of twin line 1/2 inch hydraulic hose with quick couplings. Variable speed adjustment for oil flow.

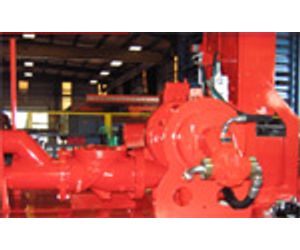

Main 3000 gpm Pump
Dri-prime, automatic self priming up to 28 ft. Eight inch suction and discharge ports will pass solids up to 3-1/8 in., dry running oil bath bearings with mechanical seals, hydrostatically driven, 11-3/8 in. impellor. Performance specifications: 300 gpm at 2200 rpm and 80 feet of head pressure, maximum working pressure is 78 psi. Maximum horsepower to 170 bhp at full flow and pressure.
Options
Tool boxes are available for mounting on both sides of the truck.

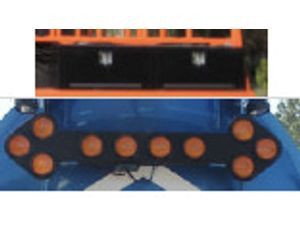

Arrowboard
