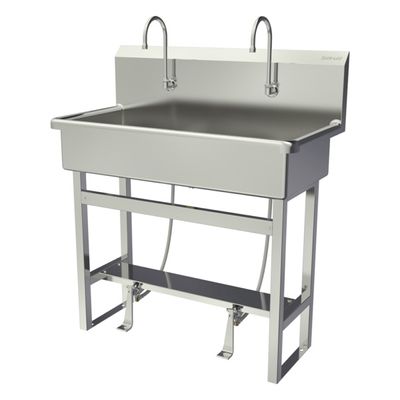

Sani-Lav - Model 54F1 -Floor Mount Single Foot Valve Wash-Station
Certified NSF/ANSI Standard 2 Food Equipment and NSF/ANSI 372 low-lead; Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish. Specially designed foot valves provide easy access to working parts without disconnecting mount or plumbing.
(1) Two-person floor mount wash station – Model 54F1
(1) Leg assembly set
(4) Washers and nuts for connection sink to leg assembly set
(2) Single foot pedal valves (bottom mount) with 12 nuts – Model 106L
(2) Swivel gooseneck spout with aerator – Model 2003L
(1) Strainer assembly with basket – Model 1010
(2) Connecting tubes for valve to spout connection – Model 1007L
(4) Fittings, brass, 0.375” male compression and 0.375” male NPT – Model 1008L
(2) Mixing check valve – Model 201L
Outside Dimensions: 40″ x 20″ x 45″ High
Inside Bowl Size: 37″ x 16-1/2″ x 8″ Deep
Back Splash Height: 10″
Water Activation: Single Foot Pedal Valve
Flow Rate: 2 GPM
Inlet Connections: 3/8″ Male Compression
Drain Opening: 2″
Finish: Satin
Strainer: 1-1/2″ Dia. Duo Basket Strainer
