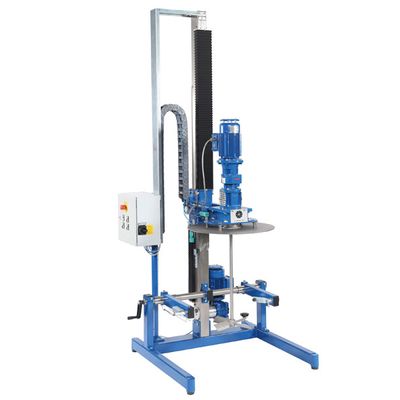

Rigid stand with H-foot for tanks that range in volume from 100 l. Under these conditions, the stand can be equipped with all fast running or gear-reduced mixers and their matching mixing elements. Mixer powers from 0.37 kW to 7.5 kW and support loads up to 100 kg – by means of a reinforced stand loads up to 300 kg – can be realized.
The agitator is positioned on a telescope sleeve that is moved via the spring-suspended lid connected to the stand. The lift is done by a geared hand-wheel or electric with a lift drive and chain drive. The mixer is positioned on a cantilever beam which is fixed to a support slide that is moved on the stand column. The electric or pneumatic supply is guided through a laterally mounted energy chain.

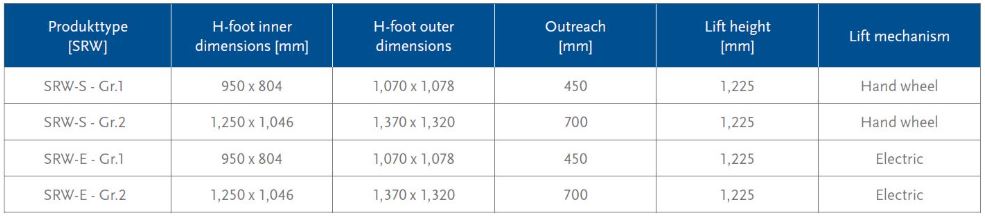

- The floor stand mixer SRW is available in two standard sizes that are particularly designed for the processing of exchangeable vessels such as drums and IBCs.
- Various tank sizes upon request.
