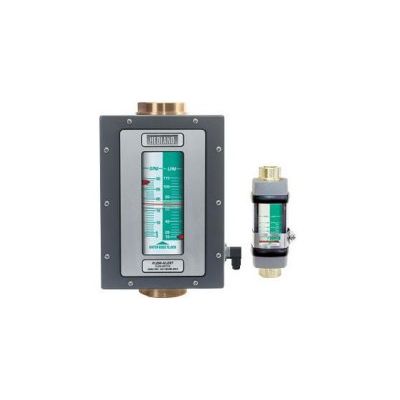

Hedland - Flow-Alert Reed Switch

Flow-Alert Reed Switch; No mechanical linkage. Provides output to signal alarm if flow is too high or too low. Flow ranges: 0.02 - 0.2 GPM (0.1 - 0.75 LPM) up to 10 - 150 GPM (50 - 560 LPM). Construction: Aluminum, brass and T303 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 6,000 psi (414 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%. Standard calibration: 1.0 specific gravity. Install in any position. Easier to read linear scale. No flow straighteners or special piping required.
