Shenzhen Jewellok Technology Co., Ltd

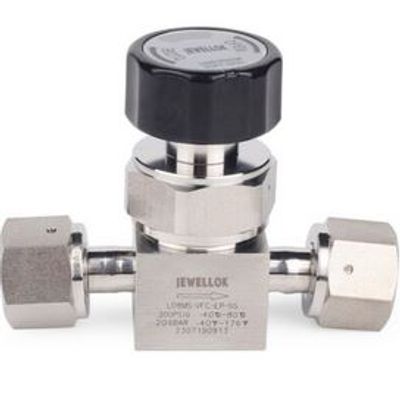

Jewellok - Model 316L VIM-VAR -Flow Control Stainless Steel Low Pressure Manual Diaphragm Valve
316L VIM-VAR stainless steel body material for ultrahigh-purity applications. The inner surface roughness can reach Ra 5 μin, and the flow channel can be completely cleaned. Minimizes entrapment areas. Facilitates purging. Maximizes flow capacity.
Most popular related searches
diaphragm valve
helium leak detection system
helium test
particle generator
flow control
manual valve
contamination testing
contaminant testing
Diaphragm
- Hastelloy C-22 or cobalt-based superalloys (UNS R30003) material for strength and corrosion resistance.
- Optimal design for long cycle life.
Seat
Fully contained PCTFE seat design provides:
- excellent resistance to swelling and contamination.
- improved helium leak test performance.
- minimal particle generation.
- long cycle life.
High cleanliness assembly and packaging are suitable for the high-purity semiconductor industry.
Every product undergoes helium testing before leaving the factory.
