Badger Meter, Inc.

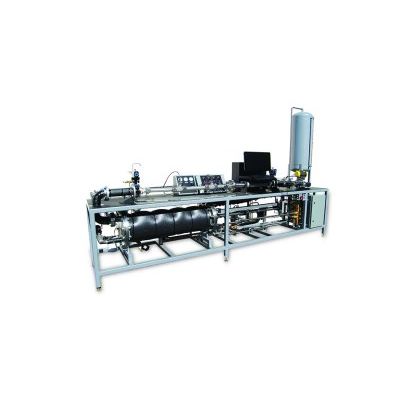

Flow Dynamics - Model PDLC 400 -Positive Displacement Liquid Calibrator
The Positive Displacement Liquid Calibrator (PDLC 400) provides calibration for multiple meters 2-1/2` or smaller. Having an integrated Flo-Cal user interface and DAQ system installed on the frame of the calibrator reduces floor space and eliminates the need for a cart. This robust Primary Standard Calibrator incorporates a unique return line cyclone system that filters air entrapment from being re-circulated back into the flow meter under test. All PDLC calibrators have an excellent electronic signal-to-noise ratio providing the highest quality of captured data obtainable. Panel frame coverings are optional along with automatic test section bleed valves.
Most popular related searches
digital temperature controller
isolation valve
bleed valve
industrial testing
chilled water
turbine flow meter
flow meter
flow calibration
cyclone system
temperature sensor
- The precision cylinder on the PDLC ensures ample volume to capture stable data at max flow rate
- Has isolation valves in the test section, which reduce the amount of fluid loss when meters are installed or removed
- An internal pump is provided to simplify filling and draining the calibrator
- The system automatically cycles the fluid for mixing of fluids
- Has separate temperature sensors for the cylinder and test section to correct for changes in volume as recommended by NIST
- Have long test sections that can accommodate two turbine flowmeters with flow straighteners in tandem. This is the recommended set-up for a NIST roundrobin calibration check
- Comes standard with frequency, voltage and current inputs
- Has three rate-control valves for course, medium and fine flow rate control
- Provides a filtered pump to return fluid from the test section pan to the reservoir
- Provides provides automatic temperature control using a fluid heater plus connections for a chilled water flow loop
- The run and return valves are activated automatically by software commands
- Size : Up to 2.5 in.
- Temperature Range : 40…140 °F
- Flow Range : 0.001…400 gpm
- Pressure Range : Up to 120 PSI
- Accuracy : ±0.05 %
- Application Examples : Flow Calibrations on Various Flowmeters
- Industries :Test & Measurement
