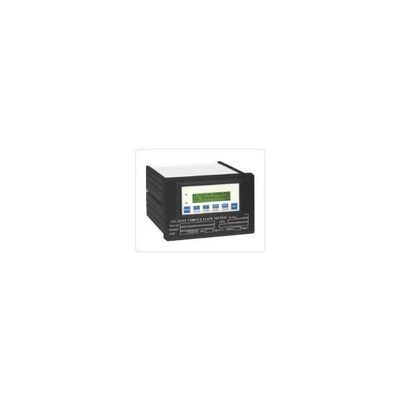

Flow Indicating Totalizer
Rate of Flow & Total Flow. 16 Characters, 2 Lines Backlit LCD Display. Character size 2.95 mm x 5.55 mm. Non volatile RAM which retains last totalizer reading in case of power failure. Isolated linear 2 wire, 4-20 mA DC Output. [External DC power supply required]. Flow indicator units acts as a Modbus (RTU) Slave Device with RS232 / RS485 (optional). Standard Modbus (RTU) or any other.
Warranty
3 years warranty for replacement of Parts free of charge, if the Flow meter is working within operating limits specified in the system identification and not physically damaged.
Proven High Reliability
Field proven design of 20 years experience. Flow meter is designed to suit worst case conditions in the field. Backed by customers performance certificates for continuous working for more than 50,000 Hrs.
Low Cost of Installation
No plumbing. No troublesome piping work or special wiring is required. Flow meter is pre-calibrated at the factory and ready to begin service, immediate after installation. No field calibration required.
Save Energy - Save Cost
Very low pressure loss, 3 times less than orifice of 0.8 Beta ration this results in considerable energy saving for Air Compressors, Steam Boilers & Water Pumps.
Zero Maintenance
Absolutely Hands Off operation for years together without routine maintenance and inspection procedure.
No Wear & Tear
No rotating parts, bearings or rotor blades.
True Volumetric Output
True volumetric output is available from Flow Indicator.
Flow Indicating Totalizer
- The Flow Indicating Totalizer is remotely mountable.
- Mounting: Wall / Control Panel.
- Location: Safe Area.
- Distance: Upto 5Kms from field mounted Flow meter.
