Logotronic - Model QTRACE -Flow Measurement Systems

• Salt as tracer material.
• Measurement results immediately readable on the data logger.
• Export of measurement results to PC software WinQTRACE.
• Rechargeable battery.
• Data logger can also be used to measure temperature and conductivity.
• Replaceable conductivity sensor.

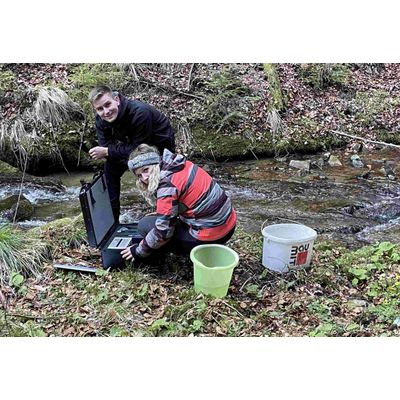

This measurement method is applied in watercourses where wing measurement is not possible due to strong turbulence or lack of measurement profile. A typical application for the QTRACE system is therefore discharge measurement in alpine regions.

• Dimensions (data logger) 200 x 120 x 85mm
• Housing (data logger) ABS plastic
• Protection class IP65
• Operating temperature -35°C to +60°C
• Power supply internal rechargeable battery
• Measurement channels 2, conductivity and temperature
• Measuring range (temperature) -5°C to 45°C
• Measuring range (conductivity) 0µS/cm to 1400µS/cm
• Interfaces RS232 with USB adapterFlow measurement according to the salt dilution method, for watercourses with strong turbulence or missing measurement profile.Flow measurement according to the salt dilution method, for watercourses with strong turbulence or missing measurement profile.Flow measurement according to the salt dilution method, for watercourses with strong turbulence or missing measurement profile.Flow measurement according to the salt dilution method, for watercourses with strong turbulence or missing measurement profile.
