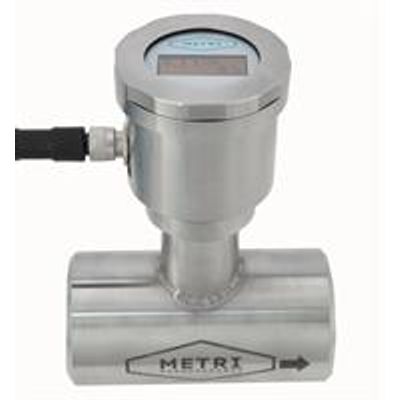

Metri - Model IC-FMS -Flow Monitor

The FMS Flow Monitor was designed with ease of use and functionality in mind.  It employs a simple user friendly interface for analog output with configuration for High / Low alarm setpoint at specific flow rates. The FMS is housed in a rugged stainless-steel body and enclosure with toughened glass screen. IP67 rated the display has a 36mm x 28mm backlit LCD screen and 2 x 10 characters of text which provides users with flowrate and totalisation indication. The display also flashes when the alarm set point is exceeded for easy visual alarm / fault indication.

The FMS is ideal for a wide range of general purpose, medical and industrial applications where stainless steel wetted parts are acceptable and  good repeatability accuracy are essential. Designed with simplicity and flexibility in mind this high quality flow sensor can be configured with a variety of connection types, at pressure to 100 Bar and temperature to 350 deg C. Further customisation is possible, consult our engineers for further details on options.

• Stainless steel wetted parts and housing
• Visual indication of flowrate & alarm
• Compatible with clean and partially contaminated liquids
• 4-20mA analogue output
• Alarm output
• Backlit LCD display
• Resettable totalizer
• High Pressure range
• High Temperature range
• Custom versions available for OEM’s
• IP67 Rating

• Water cooling systems * DI / RO water circuits * Thermal heating systems
• Fuel Monitoring systems
• Hydraulic oil / Filtration systems
• Food / water batching
• Building management systems
• Steam condensate monitoring
• HVAC application * Research and development  test rigs

• Nominal size : DN15, DN20, DN25, DN40, DN50
• Process connection : BSPP (parallel) and BSPT (taper) female threaded, DIN and ANSI flanged; other on request eg PNXX, ti-clamp, NPT, RJT
• Flange rating : PN 16, 40, 100 (BS EN 1092-1); ANSI 150, 300, 600 RF (ANSI B16.5)
• Compatibility : Solids, free and partially contaminated liquids including water, chemicals, hydrocarbons, mineral oils, alcohols
• Flow range : 05.5 to 1200 l/min, various range
• Find your flow rate
• Operating temperature : Compact mount temps: -40 to 65°C (Standard)
• Remote medium and high temps: -40 to 350°C
• Max operating temperature : All threaded bodies: Higher pressure rating on request up to 100 bar (higher pressure optional)
• Flanged bodies: depends on flange rating and operating temperature range
• Frequency range : 25-750 Hz
• Pressure drop : Varies with size, typically less than 125 mbar at maximum flow rate (standard ranges without flow restrictor)
• Linearity : ±0.5% FSD
• Repeatability : ±0.1% of reading
• Materials : Body: 304 stainless steel (standard); 316 (optional); other materials available on request
• Rotor: 431 stainless steel
• Rotor shaft: Tungsten carbide; other materials on request
• Bearings: Tungsten carbide and jewel bearings (standard and medium temperature); stainless steel ball race (high temperature)
• O-ring: Buna N (standard); Viton (optional)
• FMS electrical specification : Nominal supply voltage: 24VDC, (Galvanic Isolation from the supply is critically important)
• Load current: : 60mA
• Frequency range: : 30 – 3Khz
• Output : 4-20mA analogue output, high/low alarm
• Relay contact rating : Relay – SPST-NO: Voltage free contacts or internal link to 24VDC
• Maximum voltage switching: 200 VDC
• Maximum current switching: Milliamps – 500mA
• Maximum current carry: 1200mA
• Note: A fuse is recommended that is rated suitably for the rating of the load.
• Calibration : This product can be calibrated for 5 or 10 point, to maintain the optimum accuracy this product needs to be recalibrated annually.
