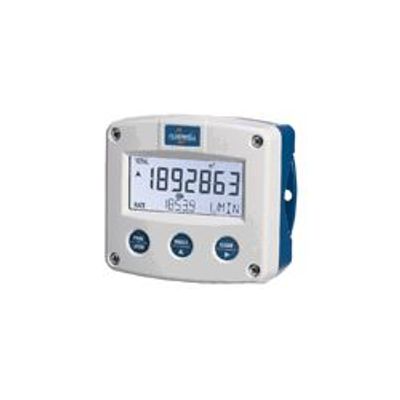

Fluidwell - Model F012 -Flow Rate Indicator / Totalizer

• Robust IP66, IP67 (NEMA Type4X) field enclosure. It is so rugged, you can even stand on it!
• Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
• Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

• Displays total and flow rate simultaneously.
• Large digit selection for flow rate or total.
• Flow rate: seven 17mm (0.67") or 8mm (0.31") digits.
• Total - resettable: seven 17mm (0.67") digits.
• Accumulated total - not resettable: eleven 8mm (0.31") digits.
• Separate engineering units for flow rate and total.
• Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit.
• Selectable on-screen time units for flow rate: /sec, /min, /hour or /day.
• Selectable on-screen engineering units for totalizer: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
• LED backlight with adjustable intensity.
• Auto backup of settings and running totals in EEPROM memory.
• Easy configuration with clear alphanumerical display.
• Ambient temperature: -40°C to +80°C (-40°F to 176°F).
• Various accessories are available for this product.
• The F-Series is so rugged, even a truck can stand on it!

• The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).
• Flow measurement where a local flow rate indication and totalizer function is required without signal re-transmission.
  Alternative basic models: F010, F011. Alternative advanced models: F013, F014, F016, F110 and higher or the D-Series DIN panel mount indicators.

Power Supply

• Long life Lithium battery.
• 4 – 20mA, input Loop-powered.
• 8 – 24V AC/DC.
• 115 – 230V AC.
• Basic: 8 - 30V DC.

Sensor Supply

3.2, 8.2, 12, 24V DC
