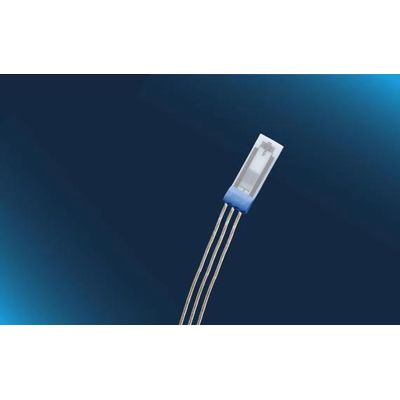

IST AG - Model FS7.4W -Flow Sensor
Gas flow sensor with flow range from 0 to 100 m/s and temperature range from -20 °C to +400 °C. For measuring flow rates using a symmetrical heater design and having an excellent sensitivity and reproducibility.
Most popular related searches
- Product Name: FS7.0.4W.015
- Measured medium: Gas Flow
- Flow direction: One direction (anemometric)
- Operating temperature range: -20 °C to +400 °C
- Chip size/dimensions: 6.9 x 2.4 x 0.20/0.60 mm
- Connection type: Pt/Ni wires
- Flow range CTA mode: 0/ms to 100 m/s
- Response time t63: ~200 ms (jump from 0 to 10000 sccm)
- Response sensitivity: 0.01 m/s
- Substrate: Ceramic
- Sensor wire: 3 pins, Pt/Ni-wires, Ø 0.2 mm, 15 mm long
- Product Old code: 350.00218
- Product code: 104999
Product description FS7.4W
The IST AG FS7.4W gas flow sensor has been developed for applications with temperatures up to 400 °C. The design of the FS7.4W is based on the FS7 design which offers a symmetrical heater that enhances sensitivity. The FS7.4W flow sensor is applicable in gas and offers excellent long-term stability. The small thermal mass of the FS7.4W sensor provides a fast response time.
- Easy adaptation in various applications and housings
- Excellent long-term stability
- Simple signal processing
- Simple calibration
- Stable platinum technology
- Excellent reproducibility
