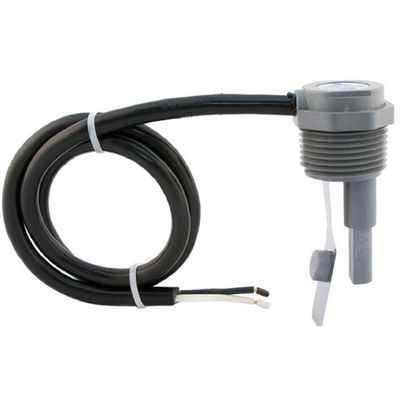

Harwil - Model Q-10 -Flow Switch – 1 inch
Model Q-10 can be provided with three factory adjustable parameters which provide performance flexibility to meet a multitude of applications: Paddle Area. Paddle Length. Paddle Stiffness. Responds to fluid flow only, independent of line pressure and temperature. Max. flow may be five times normal flow.
Positive stop eliminates fatigue effects of turbulence, vibration and flow surge on flow detecting element.
Small size and low profile provides easy mounting in crowded installations.
Very low pressure drop - typically less than 1.0 psig at normal flow rate.
Quick response.
Available with NO, NC or SPDT Reed Switch
Switches 5VDC to 240VAC.
Switches resistive and light inductive loads.
Switch employs magnetic coupling.
Send us your special requirements. We will quote a special unit to meet those requirements.
- Flow Range : 0.7–1,025 GPM (2.6–3,880 L/m)
- Working Temp : 200˚F (93˚C) Maximum
- Working Pressure : 250 psig (1.724 kPa)
- Process Connection : 1" NPT
- Electrical (Reed) Switch : SPNO (single pole normally open) 0.5A
- Enclosure : NEMA 4X / IP 66
Monitoring flow of coolant supplied to:
- Brakes and Clutches
- Emergency Wash-Down Showers
- Computer Systems
- Marine and Stationary Engines
- Diodes, SCRs, Triacs, etc.
- RF and Radar Transmitters
- Electromagnets
- Spot welders
- Fire Sprinkler Flow Alarms
- Transformers
- Lasers
- Vacuum Systems
In Water Treatment:
- Irrigation Systems
- Salt and Fresh Water Systems
- Chemical Feed Pump Control
In Chemical Processing:
- Fluid Blending Systems
- Liquid Transfer
- Heat Transfer Fluids
- Monitor Filter Clogging
- Liquid Scrubbers
- Starting back-up pumps
- Monitoring pump output, valve position, systems flow status
In Pool and Spa:
- Protect water heater in Spa
- Protect water heater in Pools
- Turn on Salt Chlorinator
- Turn on UV System
- Turn on Ozone System
