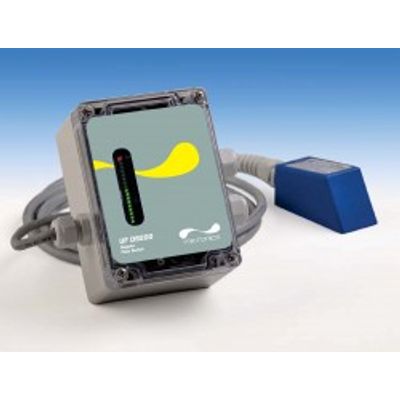

Micronics - Model UF DS200 -Flow Switch

Non contact Doppler flow switch. For “dirty” liquids. Adjustable relay/setpoint outputs. Non-invasive sensing. Easy to use.

Most popular related searches

Electronics:- Wall mounting 107x57x61.5mm
Power Input:– 100 – 240VAC, Optional 12 – 24VDC, (3 watts)
Output:– 5amp relay, DPDT
Set Point:– Field-adjustable with separate on/off set-points or select Hi flow alarm or Lo flow alarm mode
Time Delay:- Adjustable 0-80 seconds
Failsafe Mode:– Switch selectable
Indication:– Flow rate LED bargraph, relay status LED
Pipe Range:– 12.5mm ID to 4.5m ID
Sensor cable:– 6m-Shielded Coax
Optional:– 150m

Technical Information
