Muller Medical
Products

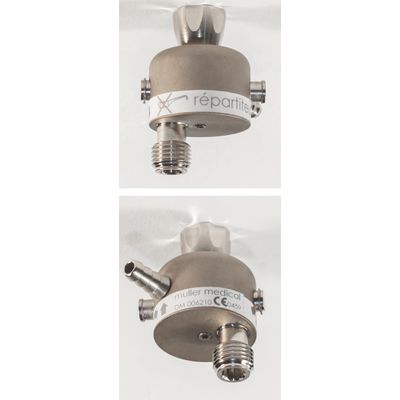

Flow Switch

Flow Switch

The selector allows you to connect the medical gas outlet from any standard flowmeter to a nipple outlet (hose connection to patient cannula) or to a humidifier. It is screwed to any standard flowmeter(outlet 12x125 or 9/16’’).

Most popular related searches

Design: Body and switch in nickel plated copper alloy

Gas: Oxygen or Air

Connection: Inlet connection with thread M12x125 or 9/16“

Cannula: Normalized nipple

Threaded outlet: 9/16“ or 12x125 for humidifier

Inlet pressure: depends on connected flowmeter type

Dimension/weight: 49x37x45 mm (HxLxl)/ 143 g

Flow Switch

Details
