FlowCam Macro - Flow Imaging Microscope for Large Particle and Zooplankton

FlowCam Macro is the particle size and shape analyzer of choice for visible particles. Direct, image-based morphological measurements give you details not available with other particle analysis methods.

Monitor the sphericity of manufactured beads, the shape and structure of fibers, polymers, crystals, and powders, or achieve taxonomic identification of zooplankton with superior particle images and image analysis VisualSpreadsheet software.

Is FlowCam right for you?

1. Get in Touch

   Tell us about your application and particle characterization needs.

2. Have a conversation

   We`re happy to set up a call to discuss the proper FlowCam configuration for your application.

3. We`ll send you a quote

   We`ll follow up to discuss the quote and can set up a seminar, demonstration, or sample analysis.

• Perform automated flow imaging microscopy for visible particle analysis

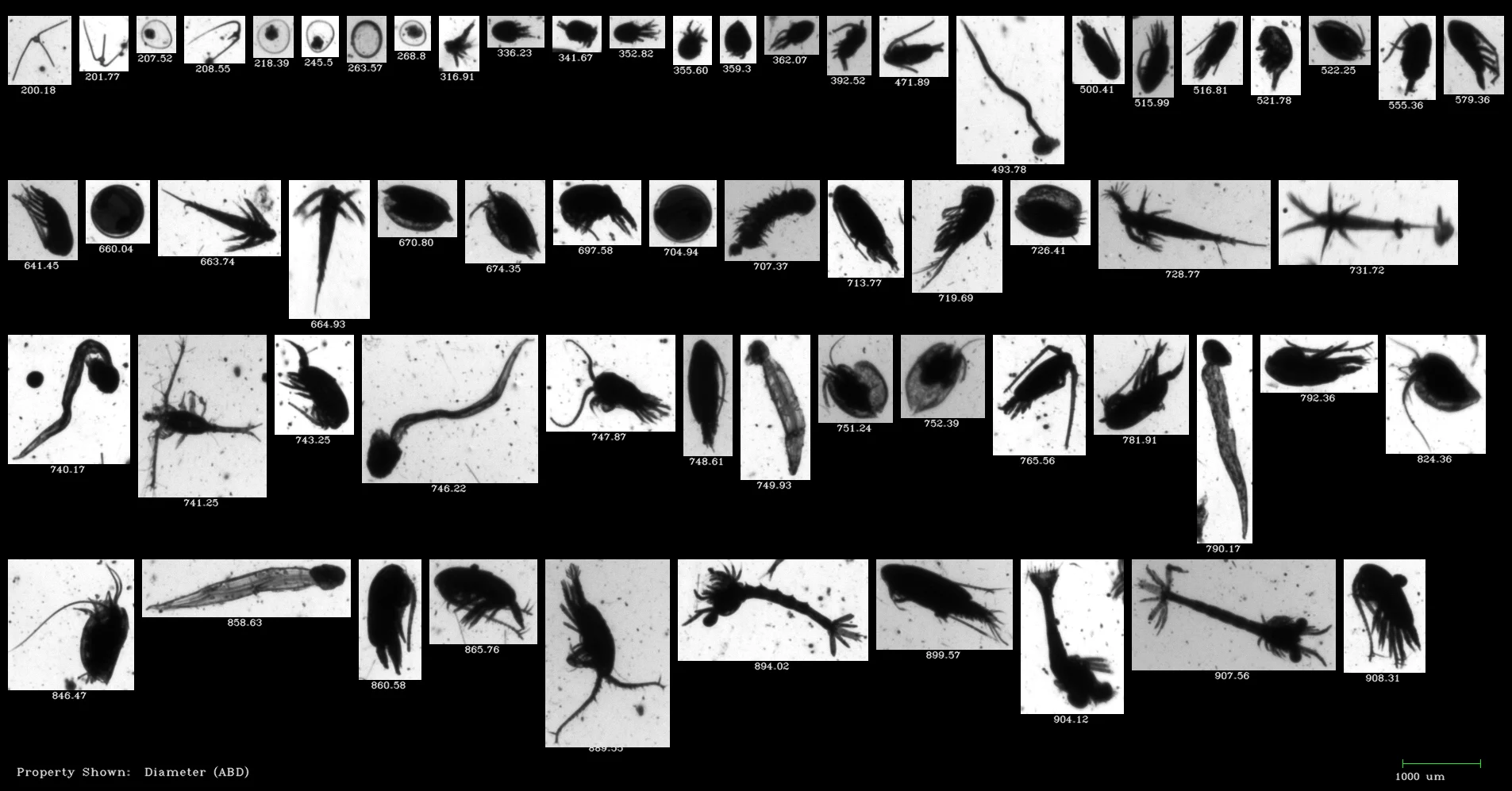

• Identify and enumerate zooplankton species in marine and freshwater environments
• Perform quality control of food and beverage ingredients
• Ensure product quality for advanced materials applications
• Measure a broad scope of morphological parameters for cross-validation of data
• Recirculate sample volume to ensure that representative samples are measured

• Particle size range: 300 μm to 5 mm
• Magnification: 0.5X
• Sample flow rate: Up to 750 mL/minute, flow through or recirculating
• High-capacity industrial peristaltic pump, 2 mm (deep) or 5 mm (deep) flow cell
• Camera type: High resolution (1920x1200 pixels) CMOS. Monochrome
• Easy-to-use instrument with fully integrated VisualSpreadsheet software
