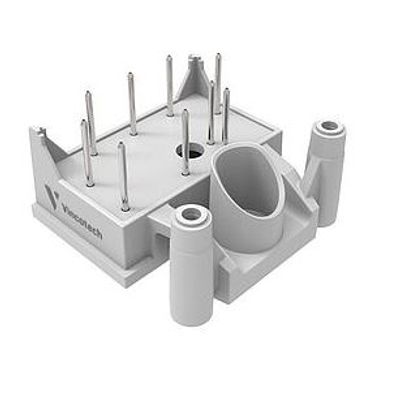

flowCON 0B - Model 10-0B166BA028SC-M989G09 -Rectifier

SHARE

Part number:  10-0B166BA028SC-M989G09. Product line:  flowCON 0B. Product status:  Series production. Break down voltage:  1600 V. Nominal chip current rating:  28 A. Standard Packing Quantity:  160.

Most popular related searches
PCB
flow modulator
  • Topology:Rectifier (+Brake)
  • Three-phase Rectifier
  • Brake Chopper
  • Chip technology (main switch): Rectifier
  • High inrush current capability
  • Base isolation (e.g. ceramic):Al2O3
  • Electrical interconnection: Solder pin
  • Module simulation data available in VincotechISE:
  • Module housing: flow 0B
  • Mechanical connection to the PCB: 2 towers
  • Footprint: 36.6 mm x 34.9 mm
  • Height: 17 mm
  • Single screw heat sink mounting
  • Ultra-compact design
  • Thermo-mechanical push-and-pull force relief
