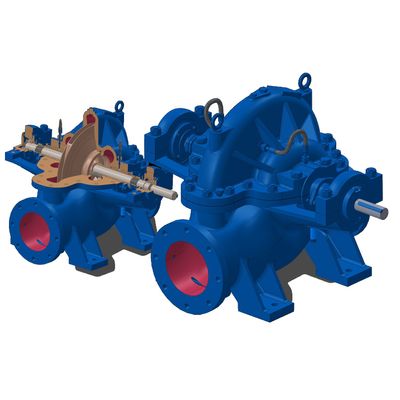

Flowmore - Horizontal Split Casing Pumps
FromFlowmore ltd
Flow: up to 18000 m³/hour; Head: up to 250 m; Sizes : 50 to 1200 mm.
Most popular related searches
horizontal split case
split case
horizontal split case pump
municipal water supply
raw water
axial split case
cooling water circulation
make-up water
life cycle cost
split case pump
- Power Generations
- Cooling Water, Circulating Water, Make up Water, Misc. & Auxiliary Services.
- Fire Fighting
- Industrial
- Steel Plants, Sugar Plants, Paper & Textile Mills, Rolling Mills etc.
- Fertilizer, Chemical, Refineries, Petrochemicals Plants
- Intake Raw Water, Cooling Water, Booster Services etc.
- Municipal Water Supply
- Clear Water, Raw Water, Waste Water and Auxiliary Services.
- Air Conditioning Plants
- Primary & Auxiliary Water
- Building Services
- General
- Waste Water Treatment, Mine Dewatering, Lift irrigation, Agriculture, Water Works, Storm Water, sprinkler irrigation, Flood Control etc.
- Horizontal Axially Split Casing, Single Stage, double suction with heavy duty shaft.
- Two Stage / double volute for high head pumps.
- Rotating assembly can be taken out for easy inspection and maintenance by removing only upper casing half, without disturbing pump`s alignment, suction and discharge pipe.
- Modular component designs for maximum interchangeability – less spare`s inventory.
- Replaceable wearing rings are provided with anti-rotation arrangement.
- Replaceable shaft sleeves.
- Sump model / CFD / Seismic analysis.
- For special services casing / impellers with 350 BHN hardness can be given.
- Available in horizontal / vertical shaft construction.
- Packing Gland / Mechanical Seal.
- Available in clockwise / counter clockwise rotation.
- For Low Life Cycle cost configuration we offer Pump with Mech. Seal, efficiency coating and features to minimize down time during maintenance.
- Can operate with motors at 50 Hz / 60 Hz.
