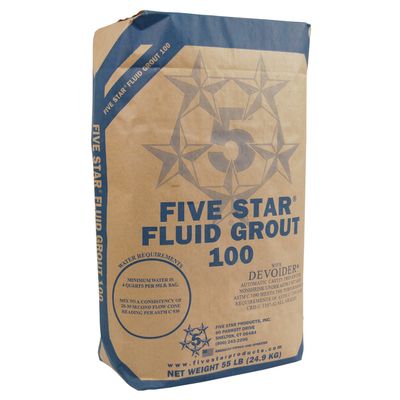

Five Star - Model 100 -Fluid Grout
Five Star Fluid Grout 100 is a cement-based, nonmetallic, precision, non-shrink fluid grout designed to support machinery and equipment in static or low vibratory conditions requiring precision grouts. It is formulated with Air Release technology, which enables product placement at a wide range of temperatures [40°F – 90°F (4°C – 32°C)] and at different water ratios while providing reliable and consistent in-place results with a 95% Effective Bearing Area (EBA) performance. It can be mixed from a plastic to a fluid consistency, increasing the ease of installation while providing compressive strengths as high as 10,000 psi (69 MPa) in 28 days. Perfect for tight clearance applications down to ½ in. (12 mm).
Five Star Fluid Grout 100 is the industry’s leading cement-based, nonmetallic, non-shrink fluid grout for supporting machinery and equipment. It is formulated with Air Release technology that combines high performance with the greatest reliability. When tested in accordance with ASTM C 827, Five Star® Fluid Grout 100 exhibits positive expansion. Five Star® Fluid Grout 100 meets the performance requirements of ASTM C 1107-02 Grades A, B and C, ASTM C 1107-07 and CRD-C 621-93 specifications for non-shrink grout over a wide temperature range, 40°F – 95°F (4°C – 35°C).
- Air release technology per ACI 351.1 R
- Placement within tight clearances down to 1/2 inch
- High 1, 7 & 28-day strength
- Permanent support for machinery requiring precision alignment
- Does not contain gas generating additives, such as aluminum powder
- Non-shrink from the time of placement
- 95% Effective Bearing Area (EBA) is typically achieved following proper grouting procedures
- Grouting clearances to ½ in.
- Grouting of anchors and dowels
- Grouting of machinery and equipment to maintain precision alignment
- Non-shrink grouting of structural steel and precast concrete
- Preplaced aggregate grouting
- Support of tanks and vessels
- Available for Nuclear Safety Zone applications
