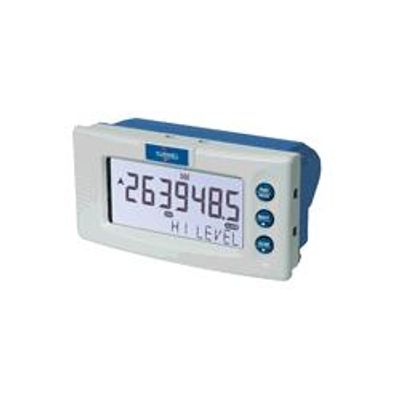

Fluidwell - Model D073 -DIN Panel Mount - Level Monitor
FromFluidwell bv
The D073 is a versatile, panel mount level monitor with continuous level monitoring feature. It offers the facility to set one low level and one high level alarm value. If desired, an ignore function can be set up to allow for an incorrect level for a certain period of time.
Most popular related searches
- Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
- Programming can be done by your own crew with the exact same, plain and sensible menu-driven structure like the F-Series, saving cost and irritation. Know one, know them all!
- Displays level, height and percentage filled.
- Two alarm values can be entered: low and high level alarm.
- Level: six large 17mm (0.67) digits.
- Selectable on-screen engineering units; volumetric or mass.
- Auto backup of all settings.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Red flashing LED backlight in case of a level alarm.
- Aluminum DIN front panel of 144 x 72mm (5.67" x 2.83") according DIN 43700 / IEC 61554.
- Various accessories are available for this product.
- The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
- The D073 fits in level measurement applications where continuous level monitoring is important.
Alternative basic model: D070 or more advanced D074, D077 or the F-Series level indicators.
- Basic: 8 - 30V DC (no real sensor supply).
- Long life Lithium battery.
- 4 – 20mAinput Loop-powered.
- 24V AC/DC + sensor supply.
- 115 – 230V AC + sensor supply.
- 8.2, 12 & 24V DC.
- (0)4 – 20mA.
- 0 – 10V DC.
- Function: Configurable alarm output for high, low or both combined level alarms.
- Type: One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.
- None
