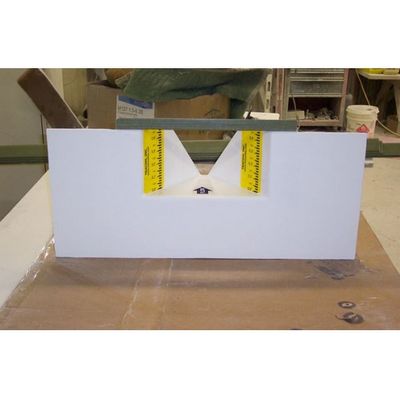

TRACOM - Model HS / H / HL -Flumes
FromTRACOM Inc.
H-Flumes are designed for a wide range of flows where discharge is unimpeded or spills freely from the flume. They were originally developed for agricultural runoff, but today are used in other applications as well. Each style has a flat bottom for self-cleaning of small debris. The standard H-Flume design conforms to U.S. Department of Agriculture, Field Manual for Research in Agricultural Hydrology.
Most popular related searches
Maximum Flow Rates:
- Maximum flow rates from 36.0 GPM – 52,509.6 GPM
Flume Sizes:
- Available in a wide range of sizes from 0.4’ HS – 4.0’ HL
Available Options:
- Approach section and inlet bulkhead available for connection to existing pipe
Submergence Information:
- Cannot operate under submerged conditions
Flume Requirements:
- Require 3-5 times the maximum head in straight channel upstream of the flume
Simple Flow Meter Calibration: Yes
