Jenway - Model 62 Series -Fluorimeter Accessories

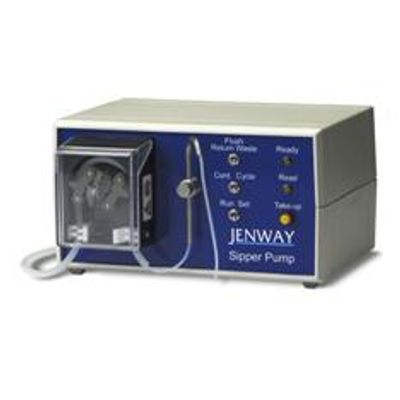

The programmable peristaltic sipper pump can be adjusted by the operator to inject a repeatable volume of sample or standard into the chamber of a flow-through cuvette.
Other options are:
- Add an air gap to separate samples
- Wash cycle
- Move sample to waste container or return to original vessel
- Pump sample continuously for monitoring a bulk or flowing sample
- Parameter : Sipper Pump
- Continuous aspiration mode : Flow rate dependant on tubing bore: 12ml/min with supplied tubing
- Timed aspiration mode : Sample/air gap/wash
- Sample volume : 75µl to 9.5ml
- Segment run time : Up to 48 seconds
- Size (w x d x h) : 205 x 190 x 160mm
- Weight : 1.5kg

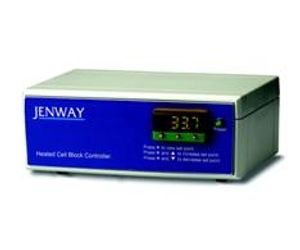

The electrically heated cell holder with its digital control unit ensures samples are always at the same temperature. This can be very important as fluorescence is inversely proportional to temperature, so care must be taken if comparing samples at different ambient temperatures. Temperature can also affect other sample properties, for example the rate of enzymatic reactions.
- Parameter : Heated Cell
- Temperature range : Ambient +2°C to 60°C
- Resolution : 0.1°C
- Regulation : ±0.1°C
- Accuracy : ±0.5°C
- Temperature control : PID
- Size (w x d x h) : 205 x 165 x 85mm
- Weight : 0.9kg for controller, 0.4kg for heated block
DataWay PC software allows unlimited storage of programs, results and graphs. It has powerful graphing functions that allow overlays of data for comparison of results. Alternatively data can be exported to other analysis programs such as Excel.

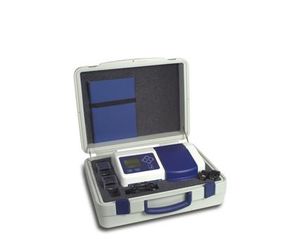

When portability or field analysis is important any 62 fluorimeter can be accommodated in the tough carry case.
All the Jenway fluorimeters can be powered from any mains supply (100 to 230V) or a 12V DC supply. When being used in a vehicle an optional cable with a vehicle auxiliary socket (cigarette lighter) can be used. A number of independent battery packs are also available.
