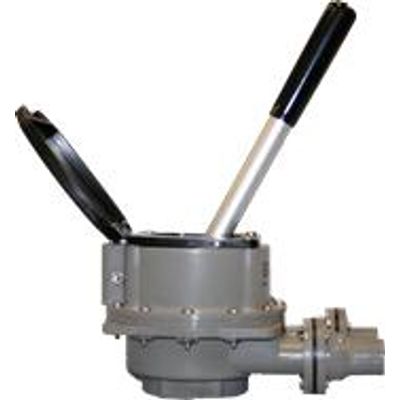

Guzzler - Model GH-M450D Series -Flush-Mounted Pump
Flush-mounted (i.e., "thru-deck") version of the space-saving Guzzler "450" pump, with same-side inlet and outlet ports.
Most popular related searches
- Flush-mounted below deck or behind wall
(Max deck/wall thickness: 3/4") - Sleek, low-profile cover plate available in black or white Delrin
- Space-saving same-side inlet & outlet ports for ease of installation in tight spaces
- Removable, rugged aluminum handle
- Handle can be positioned in 12 different orientations relative to pump ports
- Accommodates 1/2" - 1-1/4" hose
- 10 GPM
- Max Pressure 15 psi / 1.03 bar
- Lift 12.0 ft / 3.7 m
- 22.0 ft / 6.7 m with check valve
- Head 30 ft / 9.1 m
- Capacity (@ 90 strokes/min) 10.0 gpm / 37.9 lpm
- Volume per stroke 0.44 qt / 0.42 l
- Max Service Temp 212° F / 100° C
- Handle Style: Vertical/Silver (Removable)
- Valves: Duckbill (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Actuator Assembly: Aluminum Actuator
- Clamp Ring: Mounting Ring w/Black Trim Ring
- Inlet Hose Connection: 1" Smooth
- Outlet Hose Connection: 1" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
- Body & Ports: Delrin / Gray
- Clamp Ring Delrin
- Handle Aluminum: Vertical (Removable)/ Silver
- Valves: Flapper, Duckbill, Umbrella
- Diaphragm: Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly: Delrin
- Acutator Aluminum, Stainless steel
