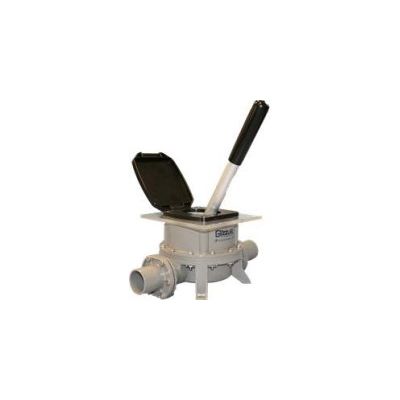

Guzzler - Model GH-M500D -Flush-Mounted Pump
Flush mounted (i.e., "thru-deck") version of the popular Guzzler "500" pump.
Most popular related searches
- Ideal for use as bilge or sanitation pump
- Flush-mounted below deck or behind wall
(Max deck/wall thickness: 3/4") - Sleek, low-profile cover plate available in black or white Delrin
- Removable, rugged aluminum handle
- Handle can be positioned in 12 different orientations relative to pump ports
- Accommodates 1-1/4" - 2" hose
- 12 GPM
- Max Pressure 15 psi / 1.03 bar
- Lift 12.0 ft / 3.7 m, 22.0 ft / 6.7 m with check valve
- Head 30 ft / 9.1 m
- Capacity (@ 90 strokes/min) 12.0 gpm / 45.4 lpm
- Volume per stroke 0.55 qt / 0.52 l
- Max Service Temp 212° F / 100° C
- Handle Style: Vertical/Silver (Removable)
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Actuator Assembly: Aluminum Actuator
- Clamp Ring: Mounting Ring w/Black Trim Ring
- Inlet Hose Connection: 1-1/2" Smooth
- Outlet Hose Connection: 1-1/2" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
- Body & Ports * Delrin / Gray
- Clamp Ring Delrin
- Handle Aluminum: Vertical (Removable)/ Silver
- Valves * Flapper, Duckbill
- Diaphragm * Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly *
- Delrin Acutator Aluminum, Stainless steel
