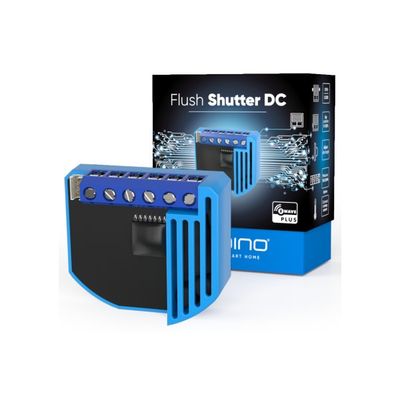

Qubino - Model DC -Flush Shutter
FromQubino by GOAP
The best way to remotely control your motorized shades and windows. Tired of your alarm clock? Fancy having the sunlight gently shine on you to start the day? Ever dreamed about controlling your shades without having to get up to adjust the blinds?
Most popular related searches
- Power supply : 12 - 24 VDC ±10%
- Rated load current : 2 A
- Overcorrect protection : 5 A
- Output circuit power of DC output (resistive load) : 48 W (24 VDC)
- Power measurement accuracy : +/- 5%
- Digital temperature sensor range
- (sensor must be ordered separately) : -25°C~+80°C (-13~ 176°F), resolution 0.1°C
- Operation temperature : -10° ~ +40°C (14 ~ 104°F)
- Distance : up to 30 m indoors (98 ft)
- (depending on building materials)
- Dimensions (WxHxD) : 41.8 x 36.8 x 15.4 mm / 1,65x1,45x0,66 in
- (packaging) : 74 x 43 x 86 mm / 2,91x1,69x3,39 in
- Weight (including packaging) : 21 g (47 g) / 0.74oz (1.66oz)
- Electricity consumption : 0,4W
- For installation in boxes : Ø ≥ 60 mm (2,36 in) or 2M,
- depth≥ 60 mm (2,36 in)
- Switching : H bridge
- Z-Wave Repeater : Yes
