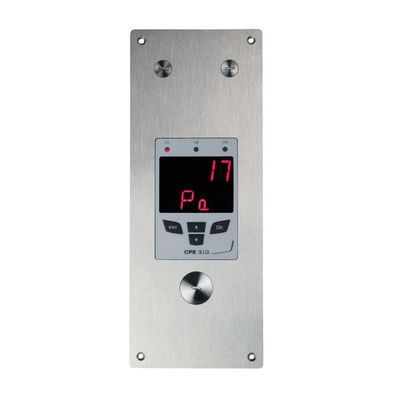

Kimo - Model CPE 310-S / CPE 311-S -Flushmount Multifunction Pressure Sensor

• Measuring ranges: CPE 310-S: from -100 to +100 Pa and CPE 311-S: from -1,000 to +1,000 Pa
• Measures temperature, humidity, air velocity, CO, CO2
• One input for probe
• Three visual and audible alarms
• Three analogue outputs 0-5/10 V or 0/4-20 mA
• Adjustment certificate

MEASURE DETAILS
Units: Pa, mbar, hPa, inWg, mmH2O, mmHg, daPa
Alarm: buzzer (70 dB at 10 cm ) / Blinking of the value

TECHNICAL DETAILS
Parameters: Air velocity; CO; CO2; Differential pressure; Humidity; Temperature
Displays: 2-line display
IP Protection: IP 65
Standards: 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/30/EU EMC; 2014/35/EU Low Voltage
Power Supply: 24 Vac/Vdc±10% (active)
Outputs: 3 x 0/4-20 mA or 3 x 0-5/10 V (4 wires)
Ethernet Communication: No
Modbus Network: No

INSTRUMENT DIMENSIONS
Length: 92 mm
Width: 44 mm
Height: 234 mm
Weight: 640 g

OPERATING TEMPERATURE
Min: -10.00 °C
Max: 50.00 °c

STORAGE TEMPERATURE
Min: -10.00 °C
Max: 70.00 °c
