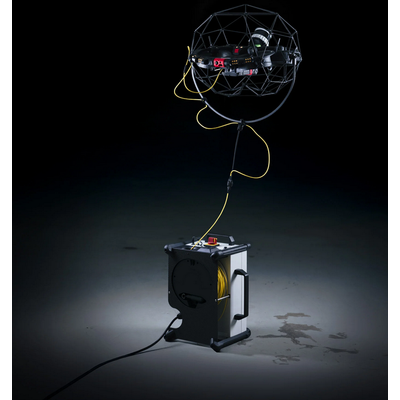

Flyability - Model ELIOS 3 UT -Surveying Payload
Remotely capture A-scans at height and in hard-to-reach spaces. Developed in partnership with Cygnus Instruments, the UT Payload turns the Elios 3 into a flying UTM gauge that can take accurate thickness measurements backed up with high-resolution A-scans in the most challenging areas. Equipped with the Elios 3 UT, industry professionals can perform regular integrity inspections in minutes - reducing the probability of unplanned downtimes.
Live 3D data localization
The Elios 3 can accommodate the UT Payload in parallel with the LiDAR payload enabling precise localization of the measurements on a digital twin of your asset during data capture.
Combined with the relocalization feature and Cockpit’s Live Map widget, the location-tagged UT measurements provide exceptional situational awareness, allowing you to easily track the completeness of your inspection.
Optimal ultrasound coupling
The Elios 3 UT Payload features a remotely operated couplant dispenser with the probe to ensure just the right amount of couplant is dispensed for perfect ultrasound transmission into the material under test. The operator can monitor the couplant level through Cockpit and return home for a quick refill or rapid swap of the dispenser’s syringe when running out of gel.
Smart Probe Arm
The smartest probe arm ever built on a drone.
IACS-compliant probes for class surveys
The Elios 3 UT Payload features interchangeable probes, including 2 MHz, 5 MHz, and 7.5 MHz twin crystal piezo-composite probes, as well as a 2.25 MHz single crystal probe, covering a wide range of measurement scenarios.
The Elios 3 UT Single Crystal Multi-Echo probe technology complies with IACS special equipment requirements for thickness measurements on ships and mobile offshore units, making it suitable for class surveys and maritime inspections.
- 7.5 Mhz (twin crystal): Small diameter pipes, thin, corroded plates
- 5 Mhz (twin crystal): Surfaces with heavily corroded pitted walls
- 2 Mhz (twin crystal): Thick walls, dirty or highly attenuating surfaces
- 2.25 Mhz (single crystal): General surfaces and thick coatings
