Flying Probe Tester

SHARE

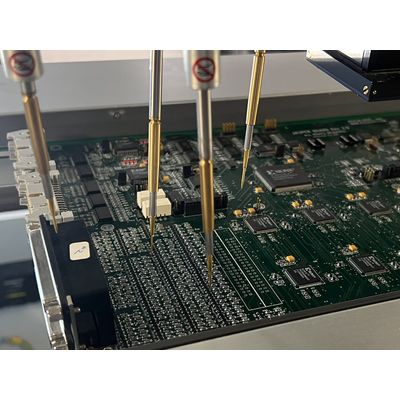

From design validation to production testing, the exclusive probe module capabilities are distinct features of the Flying Scorpion's remarkable flexibility. External measurement instruments can utilize the system's robotic probing action to perform complex tests rapidly while maintaining high accuracy and precision. Resulting in substantial cost and time savings.

Most popular related searches
PCB

IT'S HOW YOU MAKE TEST WORK FOR YOU!

  •  Unmatched test coverage
  •  One tester for all product lifecycle stages
    •  Design Validation
    •  Prototypes
    •  Manufacturing Test
    •   Repair
  •  Easy Programming
  •  No fixture or bed-of-nails needed
  •  Inline or Standalone
  • Unmatched test point contact with Programmable Probe Angle - omni-directionally on the horizontal, and -6° to +6° on the vertical planes - the taller the parts present on the unit under test the more important variable angles become. Taller components can obstruct the path of the probes, making it difficult to access test points. By adjusting the angle at which the probes contact the PCB, you can ensure that they are contacting the intended test points, even if the PCB layout is complex or the test points are not easily accessible.
  • Programmable X, Y & Z axis - the adjustable range in the Z-axis is probing up to 42 mm for fly over and up to 85 mm for fly-around.
  • Programmable probe speed
  • Programmable “No-Fly Zones”
  • Field Oriented Control (FOC) - uses mathematical algorithms to determine the best way to move the probes to contact the test points on the PCB. The algorithm considers the position of the probes, the layout of the PCB, and the height of any components that may obstruct the path of the probes. This allows the FOC system to adjust the probe angles, speed, and trajectory in real-time, to ensure that the probes contact the correct test points, without damaging the PCB or the probes.
  • Double sided Probing - Faster test times & enhanced test coverage
  • Large Test Area - Test large boards & boards with tall components: 642x 1200 mm max board size
  • Automatic Board Handling - Production line integration with autonomous loading and unloading options


Analog Measurement
Passive Components, Shorts, BodeScan Test

Vectorless Testing
ChipScan, C-Scan

Boundary-Scan /JTAG
Test Interconnects & Clusters

Power-up, Functional & RF Testing
Power-up, Dynamic Digital & Analog tests

Device Programming
Ultra-Fast Device Programming
