FlyTek - Axle Jacks
FromFLYTEK GSE

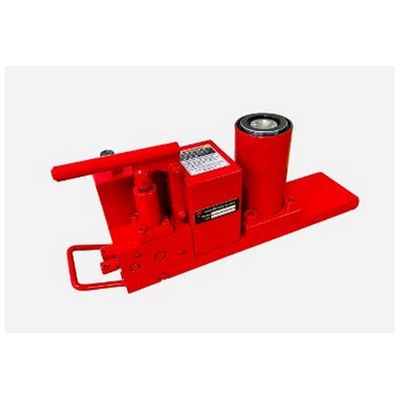

FlyTek Axle Jacks are offered in 12 Ton (10.8 Metric Ton) and 25 Ton (22.7 Metric Ton). Our jacks are engineered to lift aircraft for maintenance. Coming from a service industry, we understand what it means to have a quality product, with that in mind, we are pleased to offer jacks that are rugged and built to withstand harsh conditions for years.
Most popular related searches
Our jacks feature a steel chassis, manual hand pump, and a safety relief valve. For more information, see details below:
FLYTEK AXLE JACK-SPECIFICATION
12 Ton (10.8 Metric Ton)
- – Vertical capacity 24,000 lbs (106.75 kN)
- – Minimum closed height 4.63 in (11.76 cm)
- – Mechanical extension 4.50 in (11.43 cm)
- – Hydraulic extension 6.00 in (15.24 cm)
- – Maximum height obtainable 15.13 in (38.43 cm)
- – Weight 40 lbs (177.93 N)
25 Ton (22.7 Metric Ton)
- – Vertical capacity: 50,000 lb. (222.40 kN)
- – Minimum closed height: 8 in (20.32 cm)
- – Mechanical extension: 5.25 in (13.34 cm)
- – Hydraulic extension: 6 in (15.24 cm)
- – Maximum height obtainable: 19.38 in (49.22 cm)
- – Weight: 60 lb. (224 N)
