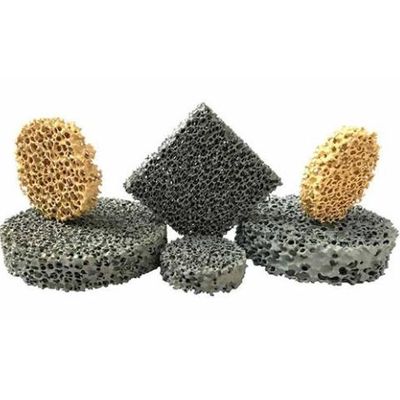

CangChen - Model SIC -Foam Filter
SIC foam filter is insulating oxide ceramics that are thermally conductive. These ceramic foam filters are ideal for use in the casting process of ductile iron, layered iron, malleable iron and all other high and low alloy cast-iron types. Using the unique formula and manufacturing process, sic ceramic foam filters have the excellent thermal shock, chemical and high temperature resistance up to 1500°C.
SIC foam filter is insulating oxide ceramics that are thermally conductive. These ceramic foam filters are ideal for use in the casting process of ductile iron, layered iron, malleable iron and all other high and low alloy cast-iron types. Using the unique formula and manufacturing process, sic ceramic foam filters have the excellent thermal shock, chemical and high temperature resistance up to 1500°C. As the most advanced filter type with the higher filtration efficiency, It can effectively reduce inclusions and turbulence of molten metal, ensuring purified molten metal goes into the mould cavity with improved flow rates.
Type: SIC ceramic foam filter for iron
- Work Temperature: <1500°C
- Color: Gray Black
- PPI: 8/10/15/20/25/30PPI(PPI=pores per inch)
- Porosity: 80-90%
- Compressive strength: >1.0Mpa(Room temperature)
- Bulk Density: 0.36-0.5g/cm3
- Thermal snock Resistance: 1200°C—room temperature 3 times
- Filtration of molten steel and alloy, large scale iron casting.
