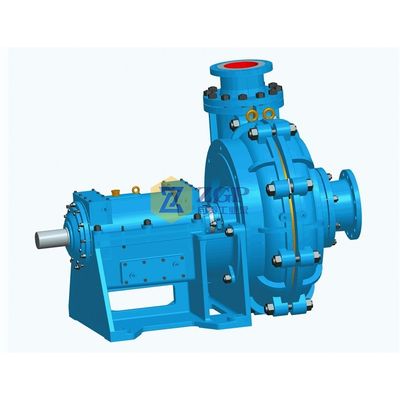

Zigong - Model ZP Series -Foam Slurry Pump
ZP series is a newly developed foam slurry pump of unique design for impeller and blades. With the enlarged pump inlet, ZP series foam slurry pump is able to easily manage slurries of heavy foam and high viscosity, as well as low NPSHr fluids. It is suitable for tough floating foam applications and heavy duty foam conveying. A normal ZZ slurry pump can be changed to ZP foam slurry pump only by installing an open impeller for foam slurry, a chambering guard plate and a new type front casing.
Most popular related searches
- Flow rate:Q=10~5000(m³/h)
- Total head:H=20~120 (m)
- Speed:n=490~2900rpm
- S.g.:γ ≤1
- Temperature:T=0~120?
- Pump diameter:50~350mm
- Horizontal structure with a big loading capacity,easy for maintenance and is able to pump bigger foam flow rate.
- Unique design of open impeller with guide vane is appliable for the foam conveying of the most severe application.
- Heavy duty shaft with better performance in strength.
- Low pump speed and linear speed design to reduce the abrasion of pump.
- Optimized bearing configurations with full lubricating enables the long time operation.
- Various anti-abrasion materials for different applications.
- Axial split bracket and double layer casing structure.
- Outer casing is vertical split structure;pump outlet is able to be set on 8 different direction at 45° interval.
- Horizontal installation of big loading capacity.
- The jacket and guard plate as the lining,pump casing and pump cover is the frame.
- Shaft sealings: dynamic seal,packing seal and mechanical seal.
- Transmission: Direct coupled,V-belt drive,variable frequency drive,hydraulic coupling.
- Severe applications of floating foams.
- Flotation producing process of ores.
- Slurries of heavy foam and high viscosity.
- Other similar applications.
