FOGTEC - Pump Systems
FOGTEC pump systems work at a pressure between 60 and 140 bar. If lower pressures would be used, the droplets generated would either be larger or they would have insufficient acceleration to reach the fire (law of energy conservation).

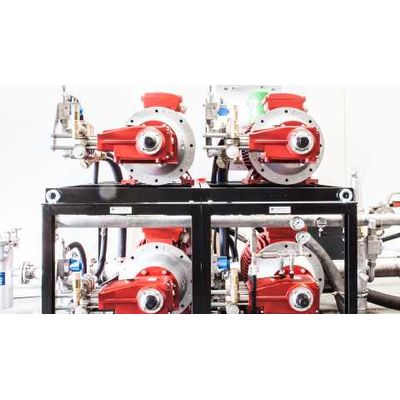

The pump units are composed of individual pump modules. Since FOGTEC pump modules are available with flow rates of 25 to 800 l/min., the overall power of a system can be optimally designed to requirements. The pump units are electrically powered or by diesel engines.
Section valves are available for various system types for dry and wet pipework, for dry pre-pressurised areas and for pre-action systems. For systems that are not activated via a glass bulb, virtually all types of fire detection systems can be used. FOGTEC control cabinets are equipped with state-of-the-art PLC controllers and can be connected to fire alarm systems while remote maintenance via a modem is available as option.
The entire pipework is made of stainless steel, being in line with international requirements for water mist firefighting systems. The pipe cross-sections range between 10 and 50 mm and can be installed and be designed according to recognised standards.
