Cornell - Model 4NMPP -Food Process Pump
FromCornell Pump LLC

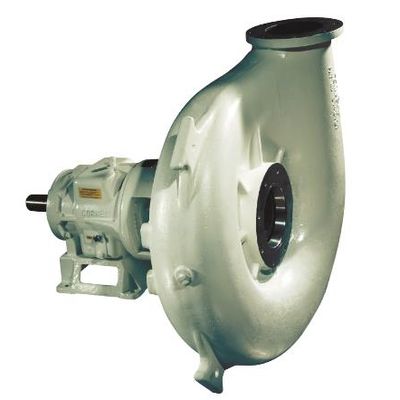

The 4NMPP pump is designed with Cornell`s renowned quality and durability. It features a 4" discharge and a 4" suction with an offset volute and enclosed, single-port impeller. Cornell`s patented Cycloseal0 design is optional, with a Type 2 single mechanical seal with Buna-N elastomers, stainless steel hardware and tungsten carbide vs. silicon carbide seal faces for abrasion resistance. Also available with food-grade packing. Bearings are heavy-duty, oil or grease lubricated, deep groove ball bearings with a minimum of 50,000 hours bearing life.
Most popular related searches
- Offset Volute Design - passes food through the center of discharge without contacting the volute wall
- Single port impeller for handling whole or processed foods
- Available with Food grade packing (Standard) or Cycloseal
- Standard with Ductile iron wet end and a 304SS impeller
- Optional Run-Dry lubrication system
- Ductile iron construction
- Oversized, offset volute
- Robust Mount Frame with mounting surfaces
- No volute cutwater
- Single vane impeller
- Smooth contours
- Reduced product damage
- Low cost of repair
- Threaded impeller
- Food grade packing
- No product contamination
- Heavy “stress-proof” steel shaft
- Cycloseal® sealing system Available
- Back-to-back double lip seals
- Extended mechanical seal life
- Oversized bearings with extended life
- Replaceable shaft sleeve
- Dynamically-balanced impeller
- Stainless Steel option
- Two-year warranty
