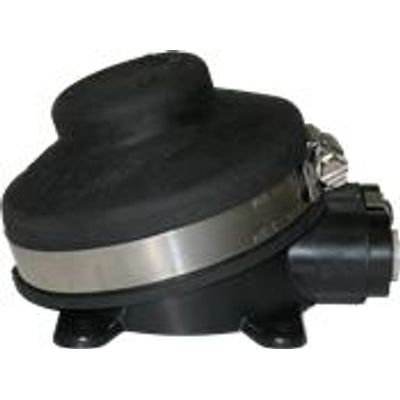

Guzzler - Model GF-0250S -Foot Pump
The Guzzler Junior is ideal for dispensing water either in portable handwash stations or in small galleys.
Most popular related searches
- Angled pump face for ease of operation from a standing position
- Accommodates 1/4" to 1/2" hose
- Optional "Quick connect" fittings simplify installation
- Available with standard or lightweight stainless steel spring
- Umbrella valves help maintain prime
- 2.8 oz per stroke (1.3 gpm)
- Max Pressure 7 psi / 0.40 bar
- Lift (dependent on spring selection)
- Head 12 ft / 3.6 m
- Capacity (with std weight spring) 1.3 gpm / 4.9 lpm
- Volume per stroke 0.09 qt / 0.09 l
- Max Service Temp 140° F / 60° C
- Rubber Boot: None
- Valves: Umbrella (EPDM)
- Diaphragm: Natural Rubber
- Plunger-Button Assembly: PVC Button
- Clamp Ring: Band Clamp
- Inlet Hose Connection: 3/8" Quick Connect
- Outlet Hose Connection: 3/8" Quick Connect
- Internal Spring: Standard Weight
- Pre-Pak Accessories: Not available
- Pump Body * Acrylonitrile-Butadiene-Sytrene (ABS)
- Clamp Ring Stainless Steel
- Valves * Umbrella (EPDM)
- Diaphragm * Natural Rubber
- I/O Flange Cartridges* PVC
- Internal Spring * Lightweight (LW), Standard (Std), Heavy-Duty (HD) (all stainless steel)
- Fittings* Acetal w/Nitrile O-Ring for True- Seal fittings / Nylon for Barbed fittings
