V&T Group BV

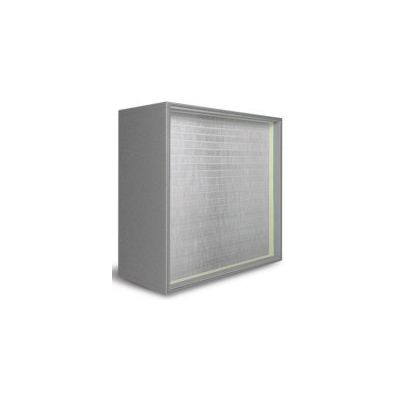

Model PAK ALU -For Air Filtration
FromV&T Group BV
Lightweight and easy installation. Filterclasses E10 - H14 conform EN1822. Low pressure drop. Guaranteed performance.
Most popular related searches
air filtration
epoxy coating
cleanroom supply
HEPA filter
cleanroom air
air filtration installation
aluminum anodizing
thermoplastic extruder
waterproofing
EN1822
- Application: Cleanroom supply air or return air
- Type: EPA- HEPA filter for turbulent environments
- Media: Waterproof micro glass fibers
- Gasket: 2 component polyurethane endless seal
- Seperator: Thermoplastic hotmelt
- Frame: Extruded anodized aluminum
- Faceguard: Mild steel epoxy coated (optional)
- EN 1822 efficiency: E10-H14
- Air velocity (m/s): 0.75 - 3.25
- Initial pressuredrop (Pa): See table, used air velocity other than nomina velocity may reduce efficiency
- Temperature: 70C° maximum in continuous service
- Filtertest: 100% individually conform EN1S22
