PCE-DFG - Model N 5K -Force Gauge

SHARE
The force gauge measures both tensile and compressive forces with very high resolution. The tensile force and the compressive force are often determined in the test laboratory, for example, to determine the yield strength, the pull-off force, and the force required to actuate a push-button or switch. The force gauge is supplied with an external measuring cell. Depending on the model, the force gauge can measure up to 10,000 N / 2,248 lbs. Models for 1,000 N / 225 lbs, 2,500 N / 562 lbs and 5,000 N / 1,124 lbs are still available. Various eyelets or hooks with M10 or M12 thread can be adapted to the measuring cells, but your own devices with this thread can be mounted on the measuring cell.
Most popular related searches
force gauge
force monitoring system
load cell
laboratory testing

The force gauge is equipped with a USB interface. This interface makes it possible to read the measurement data into the PC software. This makes it possible to create measurement logs and save and export them. The force gauge has a graphic LCD that displays the measured values both numerically and graphically. Furthermore, the force measuring device is protected to IP54 and can therefore also be used in harsh industrial environments, as well as train and pressure tests can be carried out outdoors in bad weather conditions easily.

Various force test stands are available for adaptation to the force gauge. The internal memory and the included hooks, extensions and tips complete the performance of this force gauge. A special feature of the PCE-DFG N force gauge is that the measuring cells are interchangeable among the models. By entering the sensitivity in mV / V, all measuring cells can be used with just one handheld device.

  • USB interface
  • Graphic display
  • Fast response time
  • PC software
  • Incl. calibration
  • Memory for 100 measurements
  • Measuring cells easily changeable
  • Incl. ISO calibration certificate
  • Measuring range: 0 ... 5,000 N / 1,124 lbs
  • Resolution: 1 N / 0.22 lbs
  • Accuracy: ± 0.1% of the measuring range
  • Measurement units: N, kg, lb, KPa
  • Display: 2.8" TFT graphic display
  • Alarm Modes: Inside, Outside, Crack, Shutdown
  • Sampling rate: 6 ... 1600 Hz
  • Storage: 100 measurements
  • Power supply: NiMH battery, 6V / 1600-mAh
  • Battery life: About 10 hours
  • Power adapter / charging adapter    : 12V / 1A
  • Outputs:
  • Interface: USB
  • Switching output: 12V / 50-mA
  • Protection class: IP 54
  • Operating and storage conditions:
  • -10 ... 50°C / 14 ... 122°F
  • 5 ... 95% rh non-condensing
  • Mounting thread Measuring cell
  • Up to 1,000 N / 225 lbs: M10
  • 2,500 ... 10,000 N / 562 ... 2,248 lbs: M12
  • Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
  • Weight: 540 g / 1.2 lbs

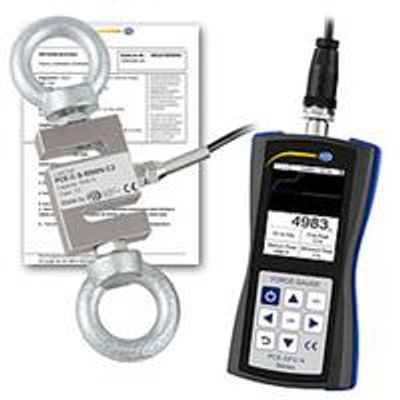

  • 1 x Force gauge PCE-DFG N 5K
  • 1 x Load cell
  • 2 x Eyebolt
  • 1 x USB cable
  • 1 x Charger
  • 1 x PC software
  • 1 x User manual
  • 1 x Calibration certificate
