Pister Kugelhähne GmbH

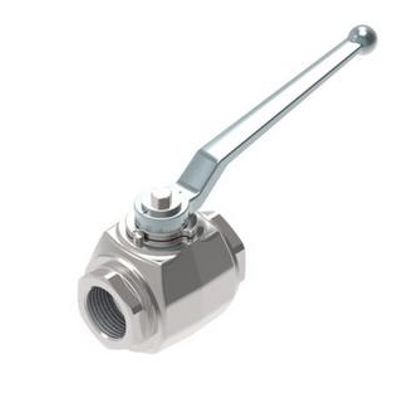

Pister - Model SKH -Forged Steel Ball Valve
Ball valves for different fields of application like construction machinery, agricultural machinery, mobile hydraulics ,mining industry, gas-industry. Available from DN04, preferable DN32 to DN50. With different connectors. Modifications: with actuator and position switch, as combination, with locking device..
Most popular related searches
ball valve
industrial gas
threaded ball valve
compression fitting
combination locks
forged valve
plastic seal
Material:
Steel
Connector:
Compression fitting light and heavy series, BSP thread, NPT thread, UNC/UNF female thread.
- Dimensions: DN04, preferable DN32 to DN50
- Body: S355
- Ball + stem: free cutting steel, stainless steel (1.4571/316Ti)
- Sealing: plastics, metal
- Pressure range: up to PN500 (note table of dimensions)
- Field of application: hydraulics, paint industries, steam, thermo oil, industrial plants, shipbuilding, paper industry (Coating seals and body materials adapted to application!)
- Temperature range: -20°C to +80°C (-4 to +176°F)
- Surface: black oxide finishing, zinc-layer, zinc nickel
