Onero - Model ONR 14 FSGB 09 - Forged ...

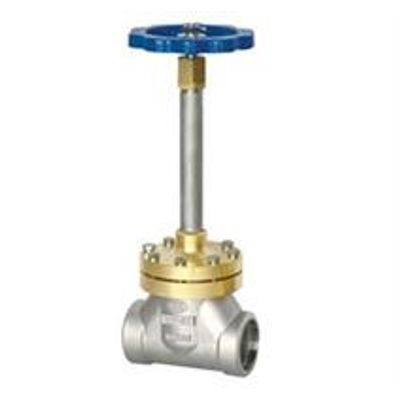

Onero - Model ONR 14 FSGB 09 -Forged Steel Extension Stem Cryogenic Globe Valve

FromZhejiang Onero Valve Co., Ltd.

SHARE

China Cryogenic Globe Valve: forged steel body material, Through Way structure, Bolted bonnet, OS&Y, Extension stem, 150lb-2500lb, handwheel.

Most popular related searches

cryogenic globe valve

forged steel globe valve

seal globe valve

bellow seal valve

Design and manufacture: API 602, ASME B16.34
Flange end: ASME B16.5
Test and inspection: API 598

Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Material: LF2, LF3, F304, F316, F347, F51, Monel, 20# Alloy
Sealing Form: Bellows Globe Valve
BB - Bolted bonnet
Extension stem
OS&Y - outside screw and yoke
Size: 1/2"-2"(DN15-DN50)
Rating: ANSI 150lb-2500lb, 800lbs;
Operation: Handwheel
