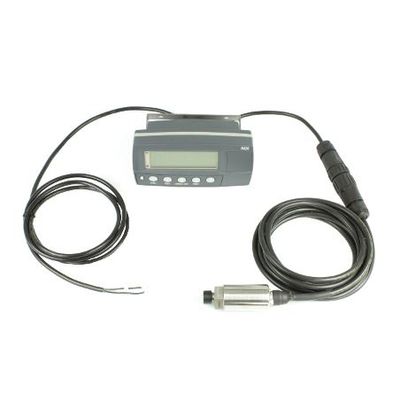

AGRETO - Forklift / Loader Hydraulik Scale
The Agreto hydraulic scale for forklift and front end loader measures the pressure in the lifting hydraulics and calculates the weight of the load. The system is ideally suited for checking the weights when loading transport vehicles.
Most popular related searches
Benefits of a forklift scales
- Portable scale, independent of location
- The weight is already determined during the loading process
- Saves the ride to the vehicle scale
- Allows optimal loading of transport vehicles
- Prevents punishment by overloading
Forklift
Because of the vertical lifting device of a forklift, the pressure in the lifting hydraulics can reliably be converted to the weight of the load.
Front loader
In a front loader, the hydraulic scale can be used with single-acting hydraulic lift and at a defined lifting height.
- Max. load: 6,000 kg (adjustable)
- Resolution: 5 kg (adjustable)
- Pressure sensor:
- Max. pressure: 250 bar
- Safe overload: 120 %
- Accuracy: 0,1 %
- Operating temperature: -20 to +65 C / -4 to +149 F
- Hydraulik connection: M14 x 1,5, inner angle 37 degree
- Cable length: 4 m
Indicator:
- Material: plastic housing
- Display: 6-digit backlit LCD display, digits height: 20 mm
- Power supply: 12 to 24 V
- Power supply cable: 2 m
- Operating temperature: -10 to +50 C / +14 to +122 F
- Dimensions: 164 x 77 x 81 mm (w-h-d)
- Functions: zero, tare, stable weight while driving, summing, external input for summing
