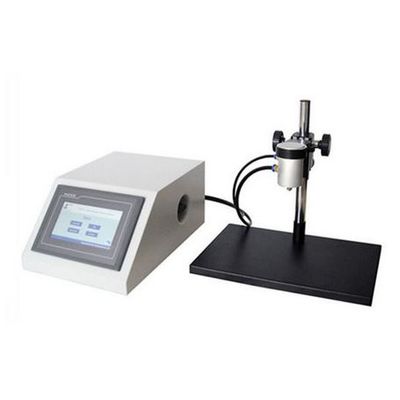

Cell Instruments - Model LSST-01 -Form and Fill Package Burst Tester

The three test modes of the Form and fill package burst tester are as follows:

• Burst Test:  It internally pressurizes the packages until the package fails. The test pressure is the maximum pressure  detected before the package fails.
• Creep Test:  Pressurize the package internally to a specific pressure and maintains this pressure for a specific time. The test measure is pass/fail.
• Creep to Failure: The package is creep-tested and held until the package fails. The pressure setting is higher than that of the creep test to ensure the package fails in some time. The measure is the time until failure.

1. Three test modes of burst, creep and creep to failure are available.
2. PLC programmable logic controller realizes precise pressure and time control.
3. 7 inch TFT touching screen for convenient parameter setting and test operation.
4. Multiple groups of test parameters can be save to avoid repetitive setting.
5. Test result auto statistics and storage.
6. Program customization available

• Pressure Range 0~600 KPa
• Beam Width 300mm(for open package)
• Inflating Head Φ4mm (Standard for sealed package)
• Gas Pressure 0.4 MPa~0.9 MPa
• Port Size Φ6 mm PU hose
