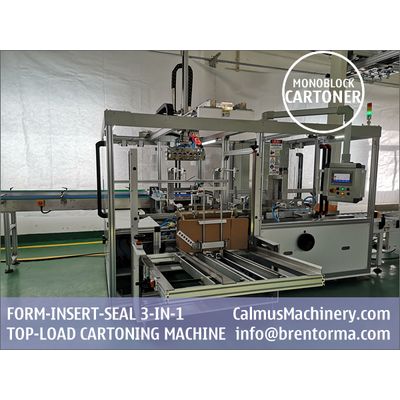

Form-insert-seal 3-in-1 case packer for packaging bricks. This top-load case packer is a monoblock cartoning machine with corrugated cases/cartons forming, filling and sealing functions. It employs a picker for picking and inserting brick-shaped products in multiple layers into cases from their tops.
This case packer can accommodate a wide range of case sizes and pack patterns. The cartons can be sealed with tape or hot-melt glue. It is a monoblock cartoning machine and easy to be installed.
Features:
1. Form-insert-seal 3-in-1, with a smaller footprint.
2. The products that this machine can pack through its dedicated infeed system.
3. Easy to install.
Specifications:
Packing type: top-load
Sealing media: tape or hot-melt glue
Compressed air: 0.4-0.8MPa
Power supply: 3 phases, customized voltage
Power consumption: 3 kW
System weight: 2,300kg
System dimensions: 3,500*1,900*2,300mm
We are aslo able to customize monoblock case packers for other shaped products than brick.
