Ningbo Forsent (Meigan) Electronics Co., Ltd

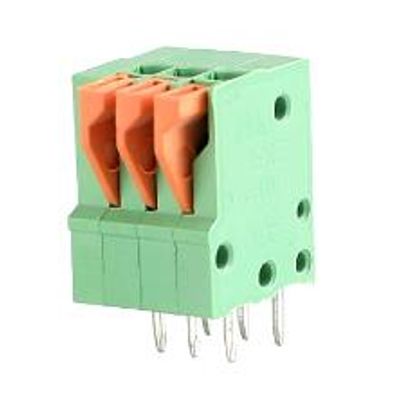

ForsentModel MG141V-2.54 -PCB Spring Terminal Blocks

SHARE

Material: Pitch 2.54MM. Poles 1-XXP. Contact Brass, Tin Plated. Clips Stainless steel. Housing PA66.UL94V-0.

Most popular related searches

ELECTRICAL

  • Rated voltage 150V
  • Rated current 2A
  • Withstanding Voltage AC1250V/1Min
  • Wire range 24-20AWG

MECHANICAL

  • Temp-Range -40°C-+105°C
  • MAX soldering +250°Cfor5sec.
  • Strip length 11mm
