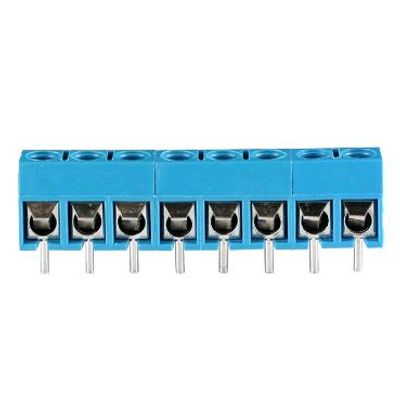

ForsentModel MG301-5.0 -Pcb Screw Terminal Blocks

SHARE

Material:Pitch 5.0MM. Poles 2P,  3P. Screws M2.5, Steel, Zinc Plated. Wire guard Phosphor bronze, Ni plated. Pin Header Brass, Tin Plated. Housing PA66.UL94V-0.

Most popular related searches

ELECTRICAL

  • Rated voltage 300V
  • Rated current 15A
  • Withstanding Voltage AC2000V/1 Min
  • Wire range 22-14AWG

MECHANICAL

  • Temp-Range -30°C~+120°C
  • MAX soldering +250°C for 5 sec
  • Torque D.4Nm(3.5lb.in)
  • Strip length 4 5-5mm
